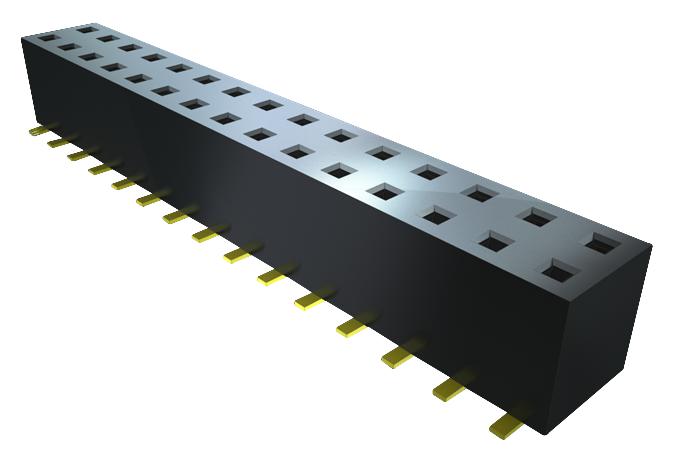

SAMTEC TLE12001GDVA High-Density SMT Connector
The TLE12001GDVA is a high-quality, RoHS-compliant, lead-free SMT connector designed for pass-through applications using Tiger Beam contacts. Made of black liquid crystal polymer insulator and phosphor bronze with gold over nickel plating, it supports current ratings up to 3.2 A per pin and operating temperatures from -55°C to +125°C. It features precise insertion and withdrawal forces for reliable performance, has optional pick & place pads, and is suitable for easy PCB assembly with minimal wipe and bottom entry options. Its versatile design makes it ideal for high-density, micro-pitch connections across various industrial applications.
SAMTEC TLE12001GDVA High-Density SMT Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au over 50p' Ni (1.27 μm)
- Current Rating: 3.2 A per pin
- Operating Temp Range: -55°C to +125°C
- Insertion Depth: 0.082 to 0.172 inch (2.08 to 4.37 mm)
- Insertion Force: 2.75 oz (0.76 N) average
- Withdrawal Force: 0.80 oz (0.22 N) average
- RoHS Compliant: Yes
- Processing: Lead-Free, Solderable
- SMT Lead Coplanarity: Max 0.004 inch (0.10 mm) for 2-26 pos, 0.006 inch (0.15 mm) for 27-50 pos
- Optional Pick & Place Pads: Yes
- Number of Positions: 2 to 50
- Length Options: Various, including 2.00 mm pitch (.0787 inch)
Buy the Samtec TLE12001GDVA – Reliable Micro Pitch Connectors for Industrial Applications
Discover the reliable high-density SMT connector TLE12001GDVA designed for industrial PCB applications. Featuring Tiger Beam contacts, gold over nickel plating, and a wide operating temperature range from -55°C to +125°C, it ensures durability and optimal performance. This RoHS-compliant, lead-free connector supports up to 3.2 A per pin, with optional pick & place pads for easy assembly. Its precise specifications guarantee efficient, secure connections, making it an ideal choice for demanding electronic and industrial projects. Buy online now for quality and performance.
Order your Samtec Series TLE12001GDVA today and enhance your PCB connections with dependable, high-density micro pitch connectors suitable for industry use.
Frequently Asked Questions
Where can I buy SAMTEC TLE12001GDVA?
You can click on the BUY or RFQ button to purchase TLE12001GDVA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TLE12001GDVA?
You can download the TLE12001GDVA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TLE12001GDVA?
SAMTEC
