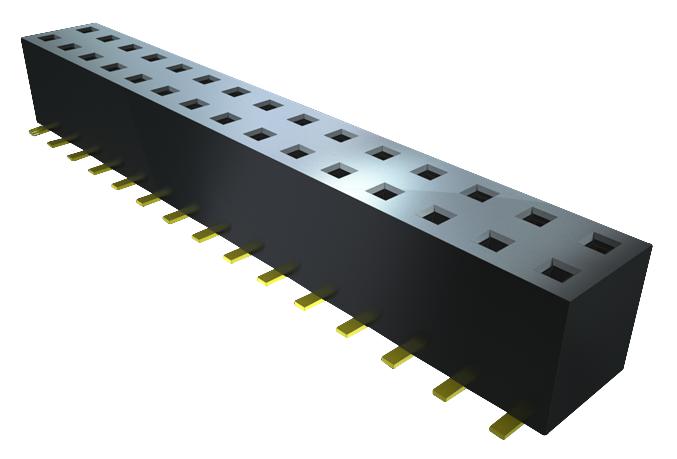

SAMTEC TLE12501GDVAKTR Micro Pitch Connector
The TLE12501GDVAKTR is a high-quality, micro pitch wire-to-board connector designed for pass-through applications, featuring Tiger Beam contacts for reliable connections. Made with black liquid crystal polymer insulator and phosphor bronze contacts plated with gold over nickel, it supports current ratings of 3.2 A per pin, with a temperature range of -55°C to +125°C. The connector offers a range of insertion depths from 0.082" to 0.172" and has RoHS compliance. Suitable for SMT processes with minimal coplanarity issues, it includes optional pick & place pads and accommodates various lengths and options. Ideal for compact electronic assemblies requiring precise, durable connectors.
SAMTEC TLE12501GDVAKTR Micro Pitch Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au over 50p" (1.27 μm) Ni
- Current Rating: 3.2 A per pin
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 0.082" to 0.172"
- Insertion Force: 2.75 oz (0.76 N) average
- Withdrawal Force: 0.80 oz (0.22 N) average
- RoHS Compliant: Yes
- Processing: Lead-Free Soldérable
- SMT Lead Coplanarity: Max 0.004" (0.10 mm) for 2-26 pos., Max 0.006" (0.15 mm) for 27-50 pos.
- Suitable for pass-through applications with optional pick & place pads
- Some lengths, styles and options are non-standard and non-returnable
Buy the Samtec TLE12501GDVAKTR – Reliable Micro Pitch Connectors for Industrial Applications
Order the Samtec TLE12501GDVAKTR online today and ensure your electronic projects benefit from durable, precise, and RoHS-compliant connectors. With features like Tiger Beam contacts, gold-plated phosphor bronze, and optional pick & place pads, this connector is ideal for pass-through applications requiring compactness and reliability. Designed for SMT processes, it supports various lengths and options, catering to complex and high-density assemblies. Enhancing your manufacturing efficiency, it guarantees secure connections and long-term durability suitable for industrial and consumer electronics.
Buy Samtec TLE12501GDVAKTR now and experience unmatched reliability and performance in high-density electronic assembly.
Frequently Asked Questions
Where can I buy SAMTEC TLE12501GDVAKTR?
You can click on the BUY or RFQ button to purchase TLE12501GDVAKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TLE12501GDVAKTR?
You can download the TLE12501GDVAKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TLE12501GDVAKTR?
SAMTEC
