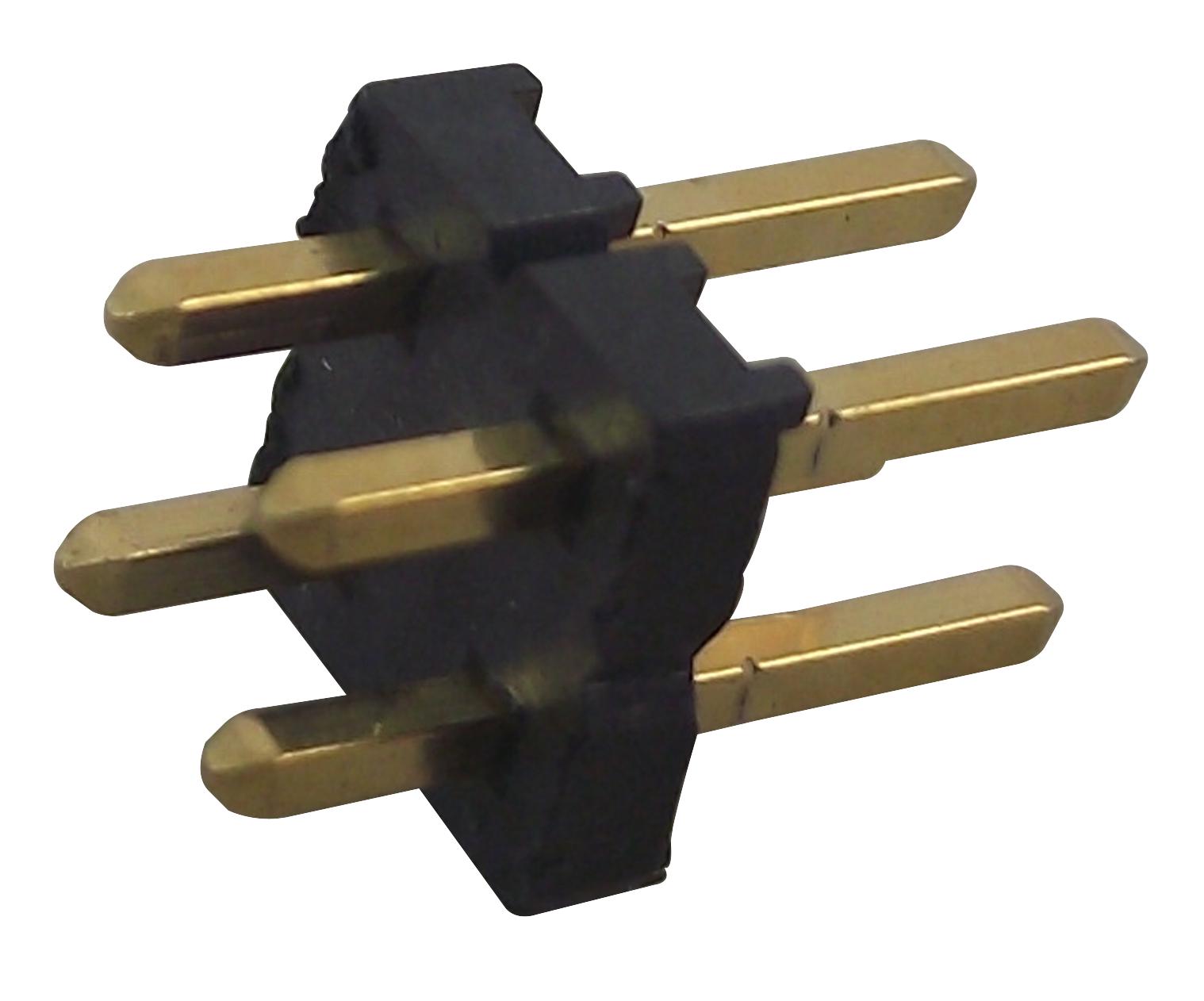

SAMTEC TLW10305GD Low Profile Header
The TLW Series low-profile header offers an ultra-slim height of 0.64mm with 0.025-inch square post spacing, ideal for compact electronic assemblies. Made from phosphor bronze with gold or tin plating, it delivers reliable electrical contact and durability, rated for 3A at operating temperatures from -55°C to +105°C with tin or up to +125°C with gold. Its versatile design accommodates standard and modified post heights, suitable for low-profile sockets and IDC applications, and complies with RoHS standards, ensuring environmentally friendly manufacturing.
SAMTEC TLW10305GD Low Profile Header Specifications:
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over 50u" (1,27mm) Ni
- Current Rating: 3A
- Operating Temp Range: -55°C to +105°C with Tin, -55°C to +125°C with Gold
- RoHS Compliant: Yes
- Processing Max Temp: 230°C for 60 seconds, or 260°C for 20 seconds
- Lead-Free Solderable: Yes
- Post Height: Standard or Modified (for IDC assemblies)
- Number of Positions: 01 to 40
- Width: 2.54mm (0.1 inch) increment per position
- RoHS compliant and suitable for high-temperature soldering
- Available with various options for length and style, non-standard styles are non-returnable
Buy the Leet Series TLW Low Profile Header: TLW10305GD
Purchase the Leet Series low-profile header TLW10305GD online today for reliable connections in space-constrained electronic applications. Crafted from high-quality phosphor bronze with optional gold or tin plating, it ensures excellent electrical conductivity and durability. Rated for 3A current and capable of operating from -55°C to +125°C depending on plating, it fits compact PCB designs requiring precise interconnects. Choose this versatile, RoHS compliant component to enhance your electronic projects with dependable, space-saving connection solutions accessible through our easy online ordering process.
Get Leet Series TLW10305GD today—built for precision and long-lasting durability in compact electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC TLW10305GD?
You can click on the BUY or RFQ button to purchase TLW10305GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TLW10305GD?
You can download the TLW10305GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TLW10305GD?
SAMTEC
