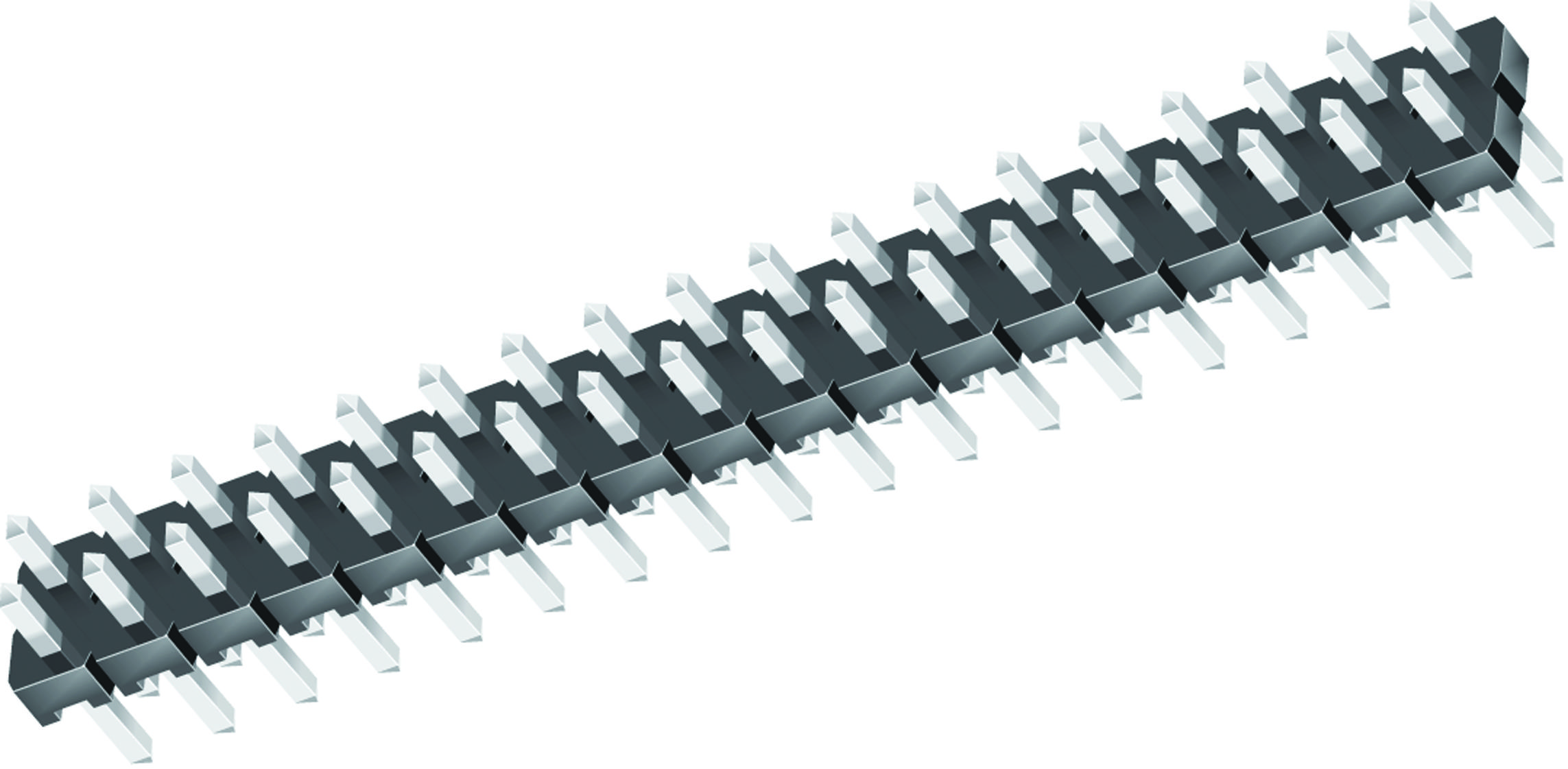

SAMTEC TLW10505GD Low Profile Header
The TLW-130-05-G-S-110 is a high-quality low profile header designed for compact electronic assemblies. Featuring a black Liquid Crystal Polymer insulator and phosphor bronze terminals with optional gold or tin plating, it supports 50U
SAMTEC TLW10505GD Low Profile Header Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Gold flash or Tin on Tail
- Pin Count: 1 to 40 pins
- Lead Type: 1 pin powered per row, with optional modifications for IDC assemblies
- Contact Rating: 5.2 A per pin
- Operating Temperature: -55°C to +105°C with Tin, -55°C to +125°C with Gold
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Pin Spacing: 2.54 mm (.100 inches)
- Size Options: Various lengths and styles, including low profile for space-constrained applications
- Certifications: RoHS compliant, recognized for quality and reliability
Buy the Samtec Series TLW Low Profile Header: TLW10505GD
Purchase the Samtec TLW10505GD low profile header online today—engineered for precision and durability in space-constrained electronic assemblies. With high current capacity and RoHS compliance, this header features a black Liquid Crystal Polymer insulator and phosphor bronze terminals with optional gold or tin plating. Suitable for various applications requiring reliable connections, its compact design supports 1 to 40 pins with spacing of 2.54 mm. Ensure optimal performance in your circuit designs by ordering this high-quality component now.
Get Samtec TLW10505GD today—built for precision and long-lasting durability in compact electronic designs.
Frequently Asked Questions
Where can I buy SAMTEC TLW10505GD?
You can click on the BUY or RFQ button to purchase TLW10505GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TLW10505GD?
You can download the TLW10505GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TLW10505GD?
SAMTEC
