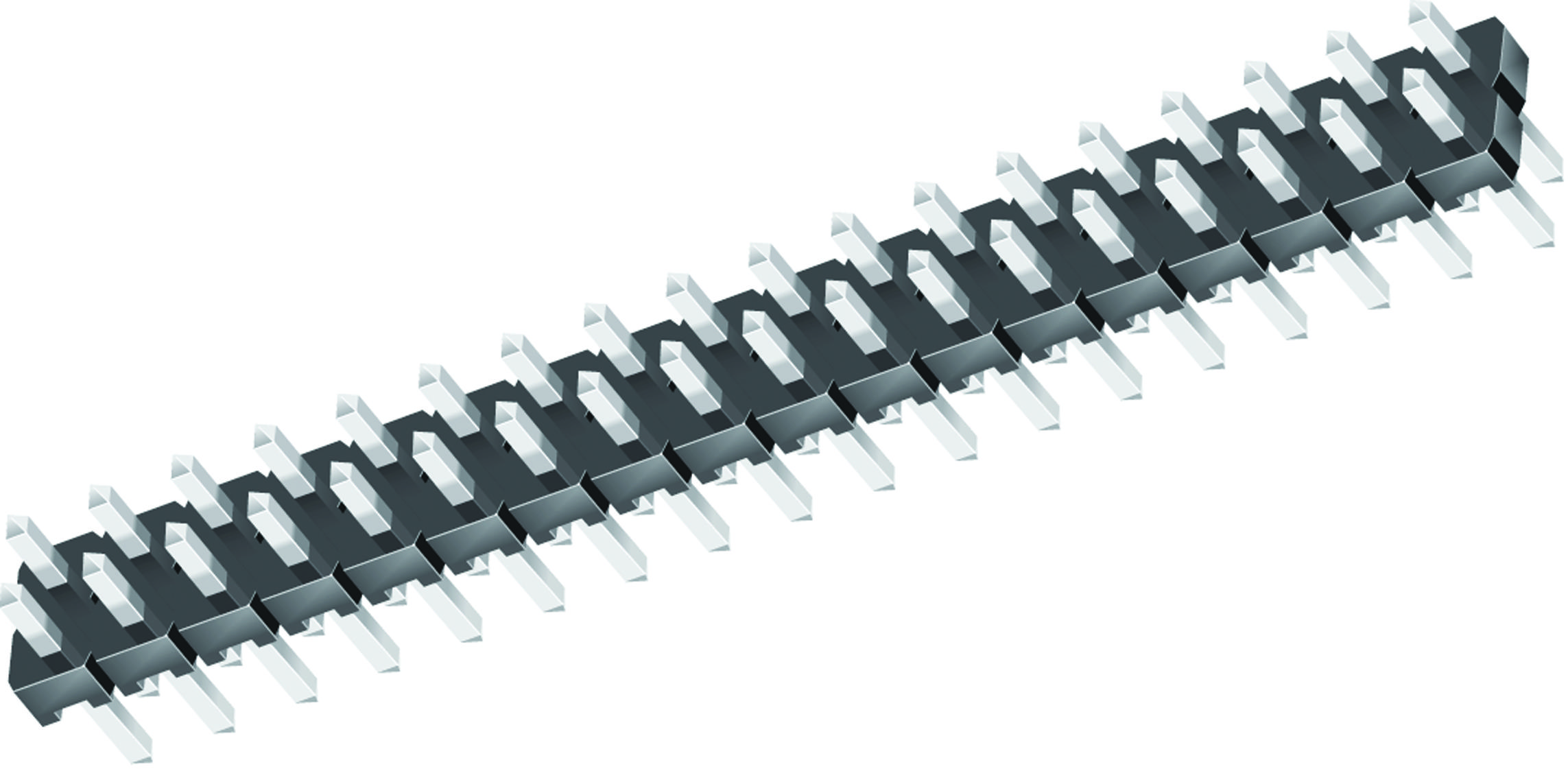

SAMTEC TLW10605GD Low Profile Header
The TLW Series low profile headers are designed for efficient PC board connections with a height of only 0.64 mm. Made with phosphor bronze and gold or tin plating, these connectors support high current ratings of up to 5.2 A per pin. They feature black liquid crystal polymer insulators, are RoHS compliant, and suitable for soldering. Compatible with low profile sockets, they accommodate different applications including IDC assemblies. Ideal for compact electronic devices requiring space-saving connectors and reliable electrical performance in demanding environments.
SAMTEC TLW10605GD Low Profile Header Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Gold flash or Tin
- Body Height: 0.64 mm (.025 inch)
- Contact Rating: 5.2 A per pin
- RoHS Compliant: Yes
- Operating Temperature Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Number of Pins: 1 to 40
- Lead Finish: Gold flash or Tin
- RoHS: Compliant
- Compatibility: Suitable with low profile sockets, IDC assemblies
Buy the Buy Series TLW Headers Part Number TLW10605GD Online
Purchase the Series TLW Low Profile Header TLW10605GD easily online and enjoy reliable, space-efficient connectors ideal for compact electronic devices. These headers are designed with high-quality phosphor bronze contacts coated with gold flash for excellent electrical performance and durability. Suitable for PCB connections, they feature a 0.64 mm height, RoHS compliance, and support a rated current of 5.2 A per pin. Suitable for various high-density applications, these connectors provide a dependable solution for demanding electronic assembly environments.
Order your Series TLW TLW10605GD connectors today and ensure your electronic projects benefit from space-saving, high-quality low profile headers.
Frequently Asked Questions
Where can I buy SAMTEC TLW10605GD?
You can click on the BUY or RFQ button to purchase TLW10605GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TLW10605GD?
You can download the TLW10605GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TLW10605GD?
SAMTEC
