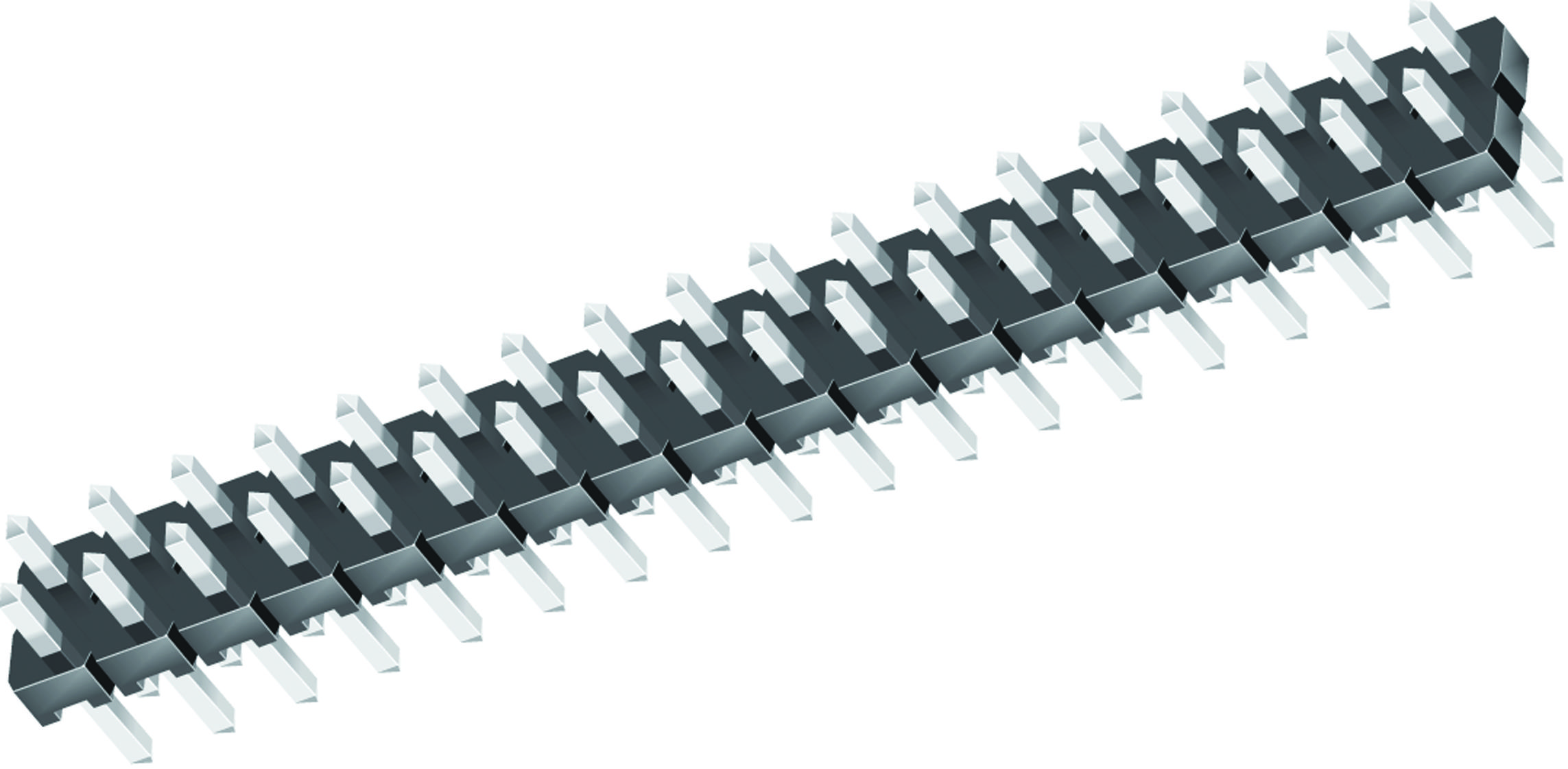

SAMTEC TLW10705GD Low Profile Header
The TLW Series low profile headers offer a compact design with a height of just 0.025 inches (0.64 mm), ideal for space-constrained applications. Made from black liquid crystal polymer with phosphor bronze terminals, they feature gold or tin plating for enhanced conductivity and corrosion resistance. Suitable for high-temperature environments from -55°C to +125°C and RoHS compliant, these headers support up to 5.2A per pin. They are available with various pin counts, insulator options, and plating finishes, ensuring reliable connectivity for PCB stacking and mating systems in electronic assemblies.
SAMTEC TLW10705GD Low Profile Header Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Gold or Tin
- Rated Current: 5.2 A per pin
- Operating Temperature Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- RoHS Compliant: Yes
- Pin Count: 1 to 40 pins
- Terminal Size: 0.64 mm (.025 inch) square
- Post Height: 0.64 mm (.025 inch)
- Tail Length: 2.54 mm
- Mounting Style: Through-hole
- Application: PCB stacking, mating systems in electronic assemblies
Buy the Samtec Series TLW Low Profile Headers: TLW10705GD
Enhance your electronic assemblies with the Samtec TLW Series low profile headers. Designed with a height of just 0.025 inches, these headers deliver reliable connections in space-constrained environments. Made from durable materials with gold or tin plating, they support high current loads up to 5.2A per pin and operate seamlessly between -55°C and +125°C. Perfect for PCB stacking, mating systems, and high-density circuitry, these headers combine compact design with excellent electrical performance for professional applications.
Buy Samtec TLW10705GD low profile headers now and experience reliable PCB stacking with space-efficient design and high current capacity.
Frequently Asked Questions
Where can I buy SAMTEC TLW10705GD?
You can click on the BUY or RFQ button to purchase TLW10705GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TLW10705GD?
You can download the TLW10705GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TLW10705GD?
SAMTEC
