SAMTEC TLW10705GS Low Profile Connector
The TLW-130-05-G-S-110 is a low-profile, square header designed for high-density applications with a compact height of only 0.64 mm. It features gold flash plating on the pins and tail, a phosphor bronze contact material, and liquid crystal polymer insulation. This connector accommodates 1 to 4 pins per row, has a current rating of 5.2 A per pin, and operates within -55°C to +125°C depending on plating. Compatible with low-profile sockets and IDC assemblies, it ensures reliable connectivity in space-constrained designs.
SAMTEC TLW10705GS Low Profile Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Gold flash or Sn over
- Pin Count: 1 to 4 per row
- Lead Rating: 5.2 A per pin
- Operating Temperature: -55°C to +125°C with Gold plating
- Dimensions: Height 0.64 mm, width varies with pin count
- RoHS compliant: Yes
- Solderable: Yes
- Compatible with low profile sockets, IDC assemblies
- Non-standard and non-returnable for some configurations
- Other platings available, specify options

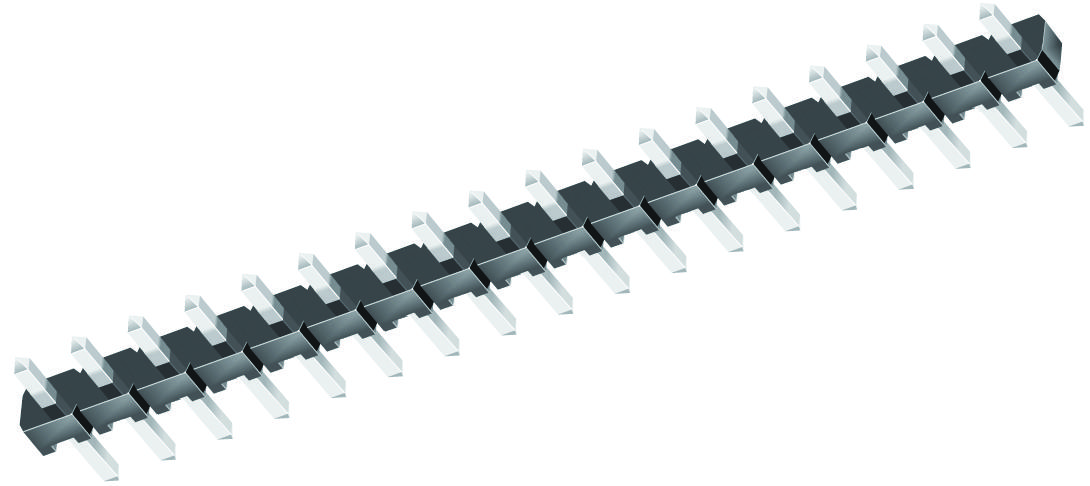

Buy the Buy Samtec TLW-130-05-G-S-110 Part Number TLW10705GS Online
Purchase the Samtec TLW-130-05-G-S-110 low-profile connector online today. Designed for high-density conductance, it features gold flash plating for durability, operates over a wide temperature range, and is suitable for compact, space-constrained electronic assemblies. Its phosphor bronze contacts ensure reliable connections, and the insulator is made from high-quality Liquid Crystal Polymer. Ideal for applications requiring minimal height with maximum performance, this connector is perfect for engineers and technicians seeking high-quality, space-efficient solutions for modern electronic systems.
Get Samtec TLW-130-05-G-S-110 today—built for space-saving designs and high current reliability.
Frequently Asked Questions
Where can I buy SAMTEC TLW10705GS?
You can click on the BUY or RFQ button to purchase TLW10705GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TLW10705GS?
You can download the TLW10705GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TLW10705GS?
SAMTEC
