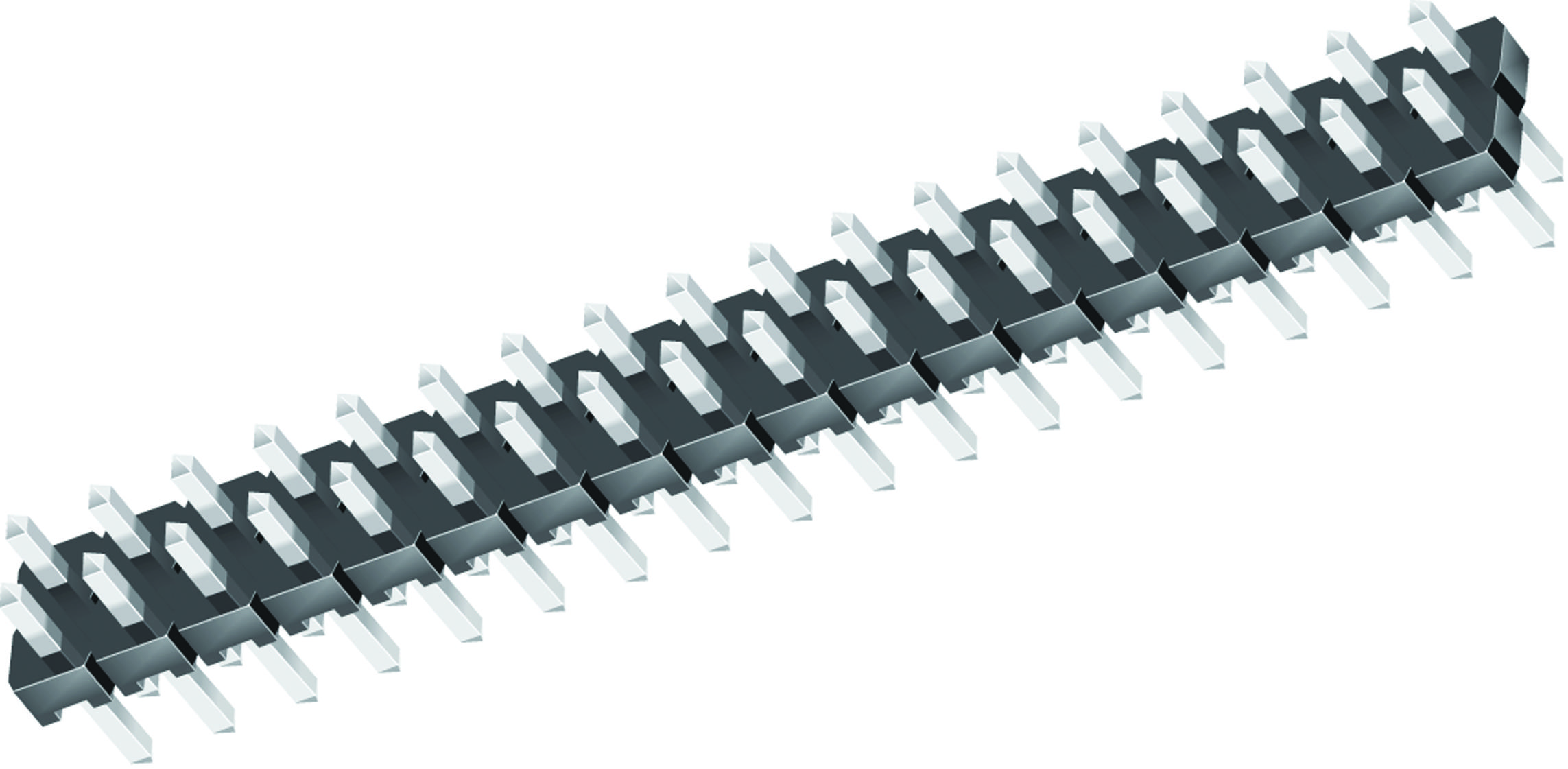

SAMTEC TLW10805GD Low Profile Header
The TLW Series low-profile headers feature a compact design with a height of only 0.025 inches, ideal for space-constrained applications. Made with phosphor bronze contact material and liquid crystal polymer insulator, these headers support up to 4 pins per row and are plated with gold flash or tin. They are RoHS compliant, operate well between -55°C to +125°C, and are suitable for use with low profile sockets or IDC assemblies. Designed for high reliability and versatility in electronic interconnections.
SAMTEC TLW10805GD Low Profile Header Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating Options: Gold flash or Tin
- No. Pins per row: 1 to 4
- Lead Finish: Gold flash on tail or Tin
- Contact Rating: 5.2 A per pin
- Operating Temperature: -55°C to +125°C
- RoHS Compliant: Yes
- Design: Low profile, 0.025 inch height, 2.54 mm pitch
- Suitable For: Mating with low profile sockets and IDC assemblies
Buy the Buy Samtec TLW Series Part Number TLW10805GD Online
Enhance your electronic assemblies with our low profile headers designed for space-sensitive applications. Featuring 0.025 inch height, gold flash or tin plating, and high temperature range, these headers ensure durable and reliable connections. Made with phosphor bronze contacts and liquid crystal polymer insulators, they support up to 4 pins per row. RoHS compliant, solderable, and suitable for use with low profile sockets or IDC assemblies, these headers are ideal for engineers seeking quality interconnect solutions for compact electronic systems.
Order your Samtec TLW Series TLW10805GD today and ensure space-efficient, reliable electrical connections in your project.
Frequently Asked Questions
Where can I buy SAMTEC TLW10805GD?
You can click on the BUY or RFQ button to purchase TLW10805GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TLW10805GD?
You can download the TLW10805GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TLW10805GD?
SAMTEC
