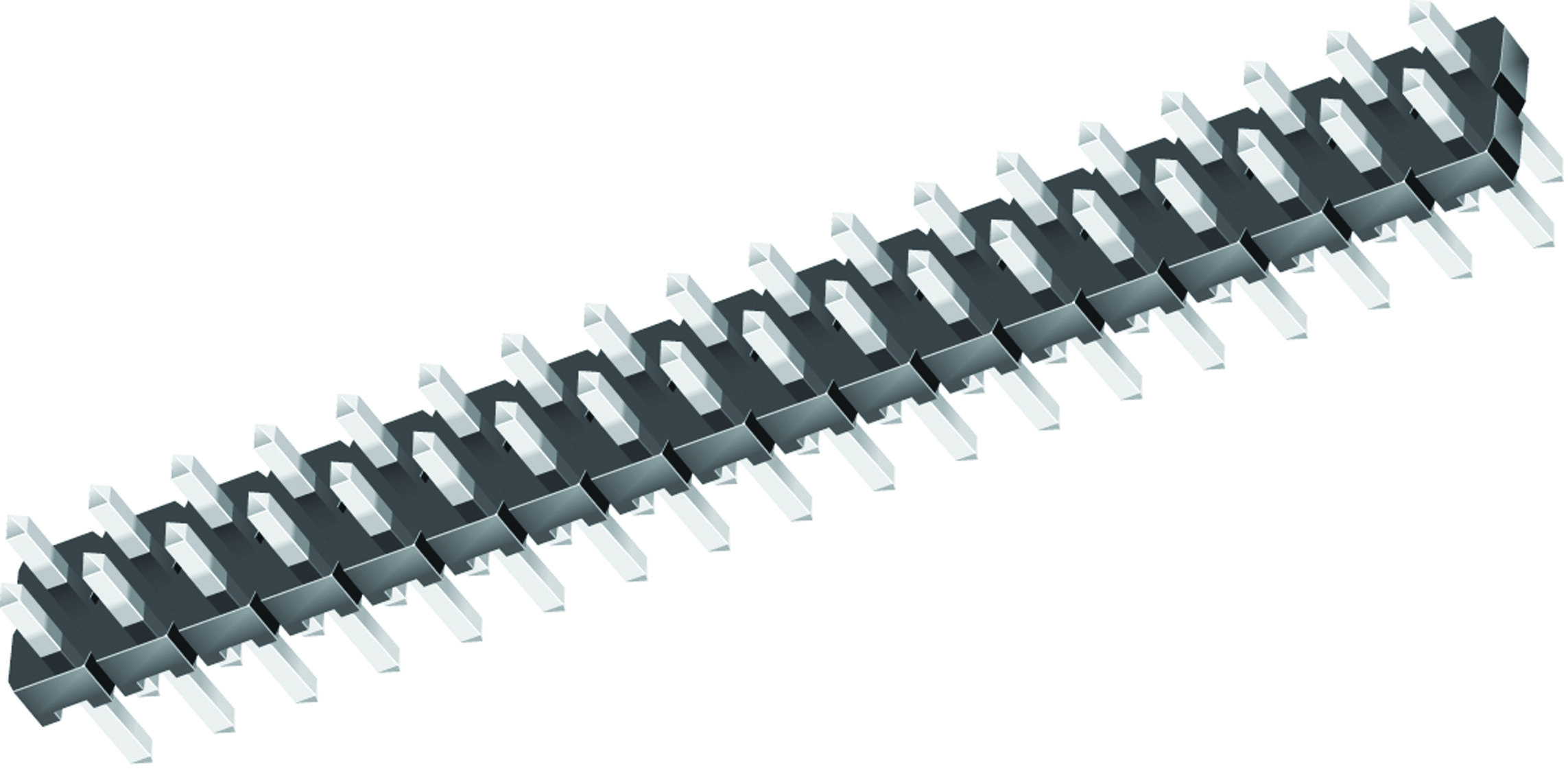

SAMTEC TLW11505GD Low Profile Stacking Header
The TLW Series low profile headers are designed for stacking applications with a height of just 0.64 mm. Constructed from Black Liquid Crystal Polymer insulators and phosphor bronze terminals, they feature gold or tin plating options. Rated for up to 5.2 A per pin and operating within -55°C to +125°C, these RoHS-compliant connectors are suitable for PCB applications requiring a compact, reliable solution with optional polarized features and various plating configurations. Compatible with IDC assemblies, they support high-density stacking in electronics and communications equipment.
SAMTEC TLW11505GD Low Profile Stacking Header Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over Ni
- Current Rating: 5.2 A per pin
- Operating Temperature Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Height: 0.64 mm (0.025 inches)
- Number of Positions: 1 through 40
- Assembly: Compatible with IDC and other connector types
- Polarized option: Yes
- Plating Options: Gold flash or tin
- Certifications: RoHS compliant
- Design: High-density, low profile stacking headers
- Application: Ideal for PCB stacking in electronics requiring minimal height
Buy the Buy Samtec Low Profile Header Part Number TLW11505GD Online
Purchase the Samtec TLW11505GD low profile stacking header online today. This high-quality connector features a compact height of just 0.64 mm, making it ideal for space-sensitive electronic applications. Constructed with durable phosphor bronze terminals and liquid crystal polymer insulators, it offers excellent electrical performance with a rated current of 5.2 A per pin. The connector supports gold or tin plating options, operates over a wide temperature range, and is RoHS compliant. Perfect for PCB stacking, IDC assemblies, and compact electronic modules, ensuring reliable connections and easy installation.
Get Samtec TLW11505GD today—built for precision with low profile design and high current capacity, perfect for space-constrained electronics assemblies.
Frequently Asked Questions
Where can I buy SAMTEC TLW11505GD?
You can click on the BUY or RFQ button to purchase TLW11505GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TLW11505GD?
You can download the TLW11505GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TLW11505GD?
SAMTEC
