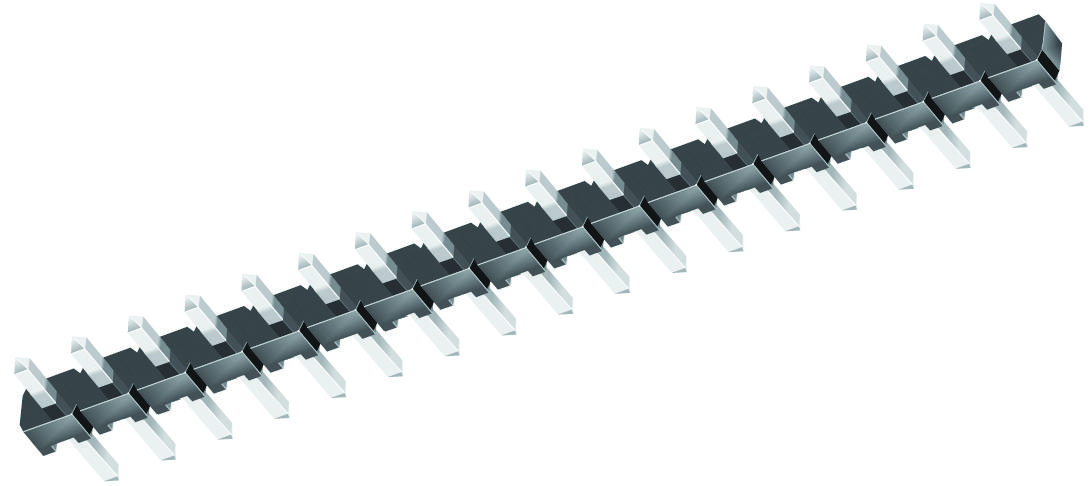

SAMTEC TLW11805GS Low Profile Connector
The TLW118-05-G-S-110 is a low-profile connector series designed for high-density, space-saving applications. Made with black Liquid Crystal Polymer insulators and phosphor bronze terminals, it features functional gold or Sn plating options. With a maximum operating temperature of -55°C to +125°C and current rating of 5.2 A per pin, it supports RoHS compliance and lead-free solderability. Its compact design, with a contact pitch of 2.54 mm (.100 inches) and a tail length of approximately .025 inches, makes it suitable for stacking and modular systems requiring reliable electrical connections.
SAMTEC TLW11805GS Low Profile Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating Options: Gold or Tin
- Contact Pitch: 2.54 mm (.100 inches)
- Pin Count: 1 to 40
- Lead Thickness: .025 inches (.64 mm)
- Operating Temperature Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Current Rating: 5.2 A per pin
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Tail Length: Approximately .025 inches
- Application: High-density electrical connections, stacking headers, modular systems
Buy the Samtec Series TLW Low Profile Connector: TLW11805GS
Experience the reliability and compact design of the Low Profile Connector ideal for high-density applications. With gold or tin plating options, a 2.54 mm pitch, and RoHS compliance, this connector ensures high-performance connections in space-constrained environments. Its robust construction supports up to 5.2 A per pin and withstands temperatures from -55°C to +125°C. Perfect for modular and stacking systems, the connector offers easy solderability and durability, making it a top choice for engineers and technicians seeking quality and precision in electronic assemblies.
Get Samtec TLW11805GS today—built for space-saving high-density applications and reliable electrical performance.
Frequently Asked Questions
Where can I buy SAMTEC TLW11805GS?
You can click on the BUY or RFQ button to purchase TLW11805GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TLW11805GS?
You can download the TLW11805GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TLW11805GS?
SAMTEC
