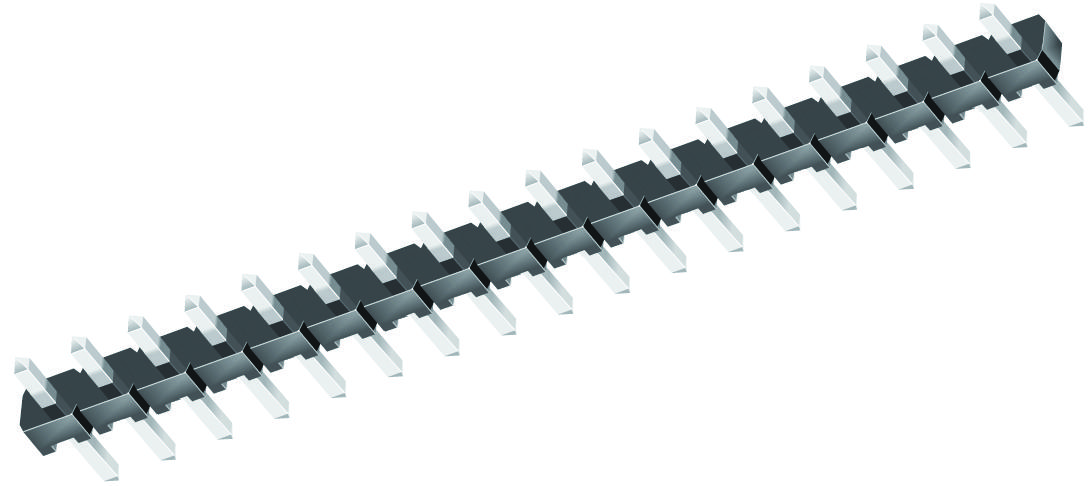

SAMTEC TLW12005GS Stacking Header
The TLW-120-05-G-S-110 is a low-profile header designed for stacking systems, offering a compact height of 0.64 mm (.025”) with gold flash plating for enhanced conductivity and durability. It features a black liquid crystal polymer insulator, phosphor bronze terminals, and a 5.2A per pin current rating. Suitable for applications requiring space-efficient connections, this model accommodates 1 to 4 pins with optional coatings and is RoHS compliant. Its small form factor makes it ideal for dense circuit board layouts and high-performance electronic assemblies.
SAMTEC TLW12005GS Stacking Header Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over nickel
- Lead Rating: 5.2A per pin
- Operating Temperature Range: -55°C to +105°C with Tin, -55°C to +125°C with Gold
- RoHS Compliant: Yes
- Pin Count: 1 to 40
- Pin Pitch: 2.54 mm (.100 inches)
- Height: 0.64 mm (.025 inches)
- Material: Phosphor Bronze terminals, Liquid Crystal Polymer insulator
- Other options: Various plating and length configurations available
- No. of Pins: 1 to 4 pins per row, with optional tail plating
- Designed for stacking and high-density applications
- Some lengths and styles are non-standard and non-returnable.
Buy the SAMTEC Series TLW: Low Profile Stacking Header TLW12005GS
Discover the SAMTEC Series TLW12005GS stacking header, designed for dense electronic assemblies requiring space-saving solutions. With a height of 0.64 mm and gold flash plating, it offers excellent conductivity and resistance to wear. Suitable for high-density applications, it features a robust phosphor bronze terminal and a black liquid crystal polymer insulator for durability. Its RoHS compliance makes it ideal for modern, environmentally friendly designs. Order online today and enhance your project’s connectivity with this high-quality, reliable component.
Order your SAMTEC Series TLW12005GS low profile stacking header today and ensure you have space-efficient, reliable connections for your electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC TLW12005GS?
You can click on the BUY or RFQ button to purchase TLW12005GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TLW12005GS?
You can download the TLW12005GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TLW12005GS?
SAMTEC
