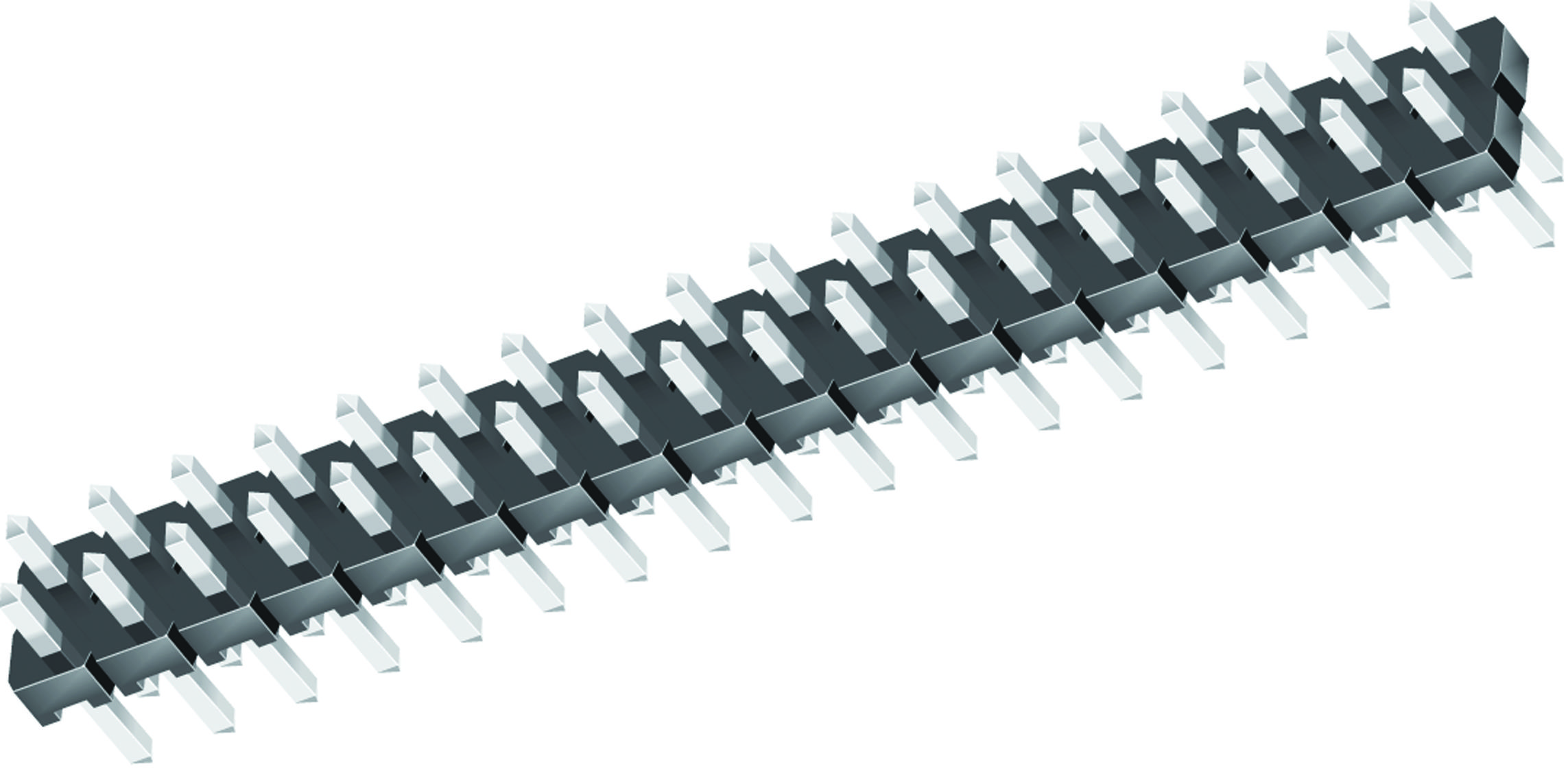

SAMTEC TLW12505GD Low Profile Connector
The TLW series are low profile, high-quality connectors utilizing phosphor bronze terminals with Tin or Gold plating, designed for versatile interconnect applications. Featuring a compact profile of 0.64 mm height and available in various styles, these connectors support IDC assemblies and other applications, ensuring durability and reliable electrical connections. Made with liquid crystal polymer insulators and RoHS compliant materials, they withstand temperatures from -55°C to +105°C with Tin and up to +125°C with Gold. Their lead-free, solderable design and versatile configurations make them ideal for modern electronic assemblies.
SAMTEC TLW12505GD Low Profile Connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze with Tin or Gold plating
- Lead-Free Solderable: Yes
- Temperature Range: -55°C to +105°C (Tin), up to +125°C (Gold)
- RoHS Compliant: Yes
- Profile Height: 0.64 mm
- Number of Positions: 1 to 36
- Pin Spacing: 2.54 mm (.100 inch)
- Pin Style: Standard, Modified for IDC and other applications
- Certification: RoHS
- Contact Resistance: Low
- Available Styles: TLW series for different mating and mounting options
- Application: Connectors for electronic and electrical systems
Buy the Buy Samtec TLW Series Part Number TLW12505GD Online
Secure your electronics with the high-quality, RoHS compliant Low Profile Connectors from Samtec's TLW series. Designed for efficient IDC and other connections, these connectors feature phosphor bronze terminals with tin or gold plating, ensuring durability and excellent conductivity. Their compact profile of just 0.64 mm height makes them ideal for space-constrained applications. Made with liquid crystal polymer insulators, they withstand temperatures from -55°C to +125°C. Easy to solder and suitable for various industrial and consumer electronics, order online today for fast delivery and competitive pricing.
Buy Samtec TLW12505GD now and experience unmatched reliability and performance with high-quality low profile connectors for your electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC TLW12505GD?
You can click on the BUY or RFQ button to purchase TLW12505GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TLW12505GD?
You can download the TLW12505GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TLW12505GD?
SAMTEC
