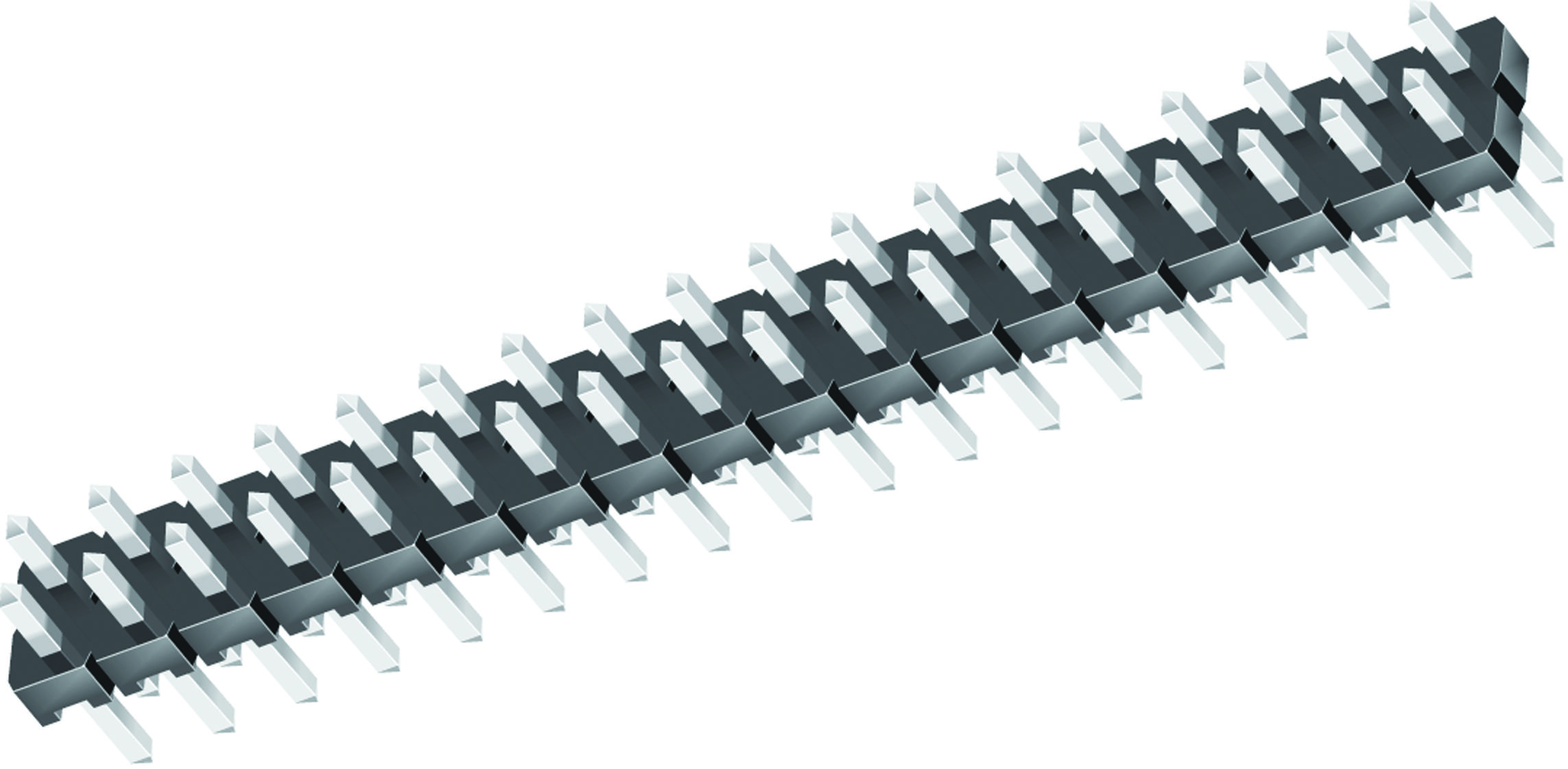

SAMTEC TLW13005GD Terminal Connector
The TLW series features low profile, high-quality terminal connectors designed for compact electronic assemblies. Made with black Liquid Crystal Polymer insulators and phosphor bronze terminals, these connectors provide reliable conduction and corrosion resistance. Offering a range of styles, including modified post heights for IDC and low-profile sockets, they are suitable for space-constrained applications. Compatible with lead-free soldering and RoHS compliant, these connectors operate within -55°C to +125°C, ensuring durability in various environments. They are ideal for mixed-density board designs requiring robust, concise connections.
SAMTEC TLW13005GD Terminal Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze with Sn or Au over ST coating
- Operating Temperature Range: -55°C to +125°C
- Lead-Free Solderable: Yes (Styles -05 & -06)
- RoHS Compliant: Yes
- Post Height: Standard 0.64 mm (0.025") or Modified (MTLW Series)
- Number of Pins: 1 pin per row, with options for up to 36 positions
- Pin Spacing: 2.54 mm (0.100")
- Dimensions: Length varies with options, typical 5.0 mm to 18.54 mm
- Design Features: Low profile, polarized, solderable, space-saving
- Application: Low-profile electronic modules, stacking systems, high-density boards
Buy the Samtec Series TLW Terminal Connectors: TLW13005GD
Enhance your electronic assembly with the Samtec TLW series terminal connectors. Engineered for space efficiency, these low profile connectors feature high-quality phosphor bronze contacts with corrosion-resistant plating. Suitable for RoHS-compliant, lead-free soldering, they operate reliably from -55°C to +125°C. The connectors support various pin configurations, making them ideal for compact modular systems or stacking applications. Order online today and ensure your project benefits from durable, space-saving, and high-performance connectivity solutions that meet demanding electronic design standards.
Buy Samtec TLW13005GD now and experience unmatched reliability and high-density performance in electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC TLW13005GD?
You can click on the BUY or RFQ button to purchase TLW13005GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TLW13005GD?
You can download the TLW13005GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TLW13005GD?
SAMTEC
