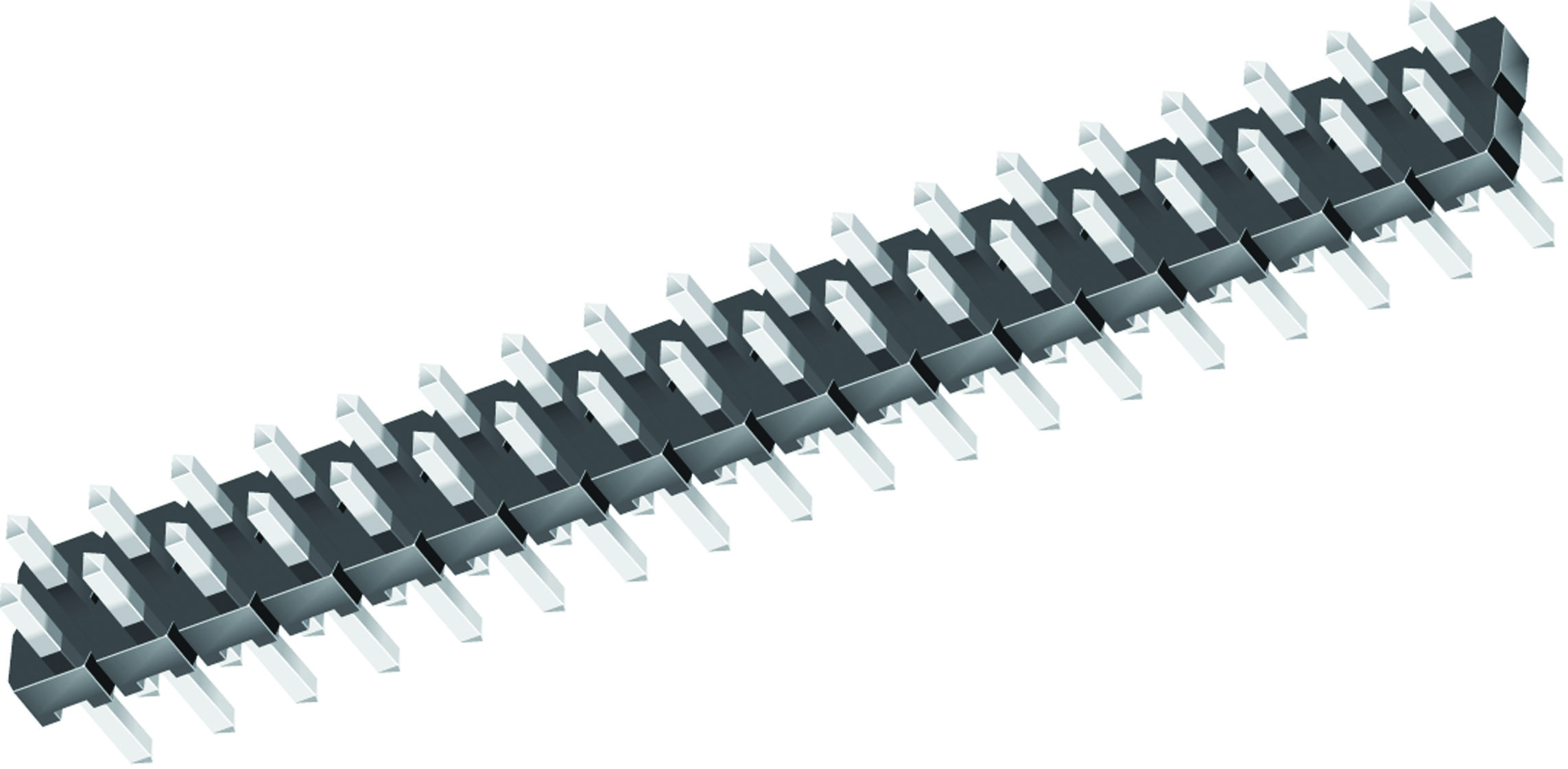

SAMTEC TLW13505GD Low-Profile Header
The TLW-130 series are low-profile header connectors designed for space-constrained electronic assemblies. Featuring a black liquid crystal polymer insulator and phosphor bronze terminals with optional gold or tin plating, these connectors support a high current load of 5.2A per pin and operate within temperature ranges of -55°C to +125°C. They are RoHS compliant, lead-free, and suitable for mating with low profile sockets, making them ideal for compact, high-reliability electronic systems requiring minimal height clearance.
SAMTEC TLW13505GD Low-Profile Header Specifications:
- Material: Black Liquid Crystal Polymer insulator
- Terminal Material: Phosphor Bronze
- Plating Options: Gold flash or Tin
- Current Rating: 5.2 A per pin
- Operating Temperature Range: -55°C to +105°C with Tin, -55°C to +125°C with Gold
- Lead-Free Solderable: Yes
- RoHS Compliant: Yes
- Number of Pins: 1 through 40
- Pin Pitch: 2.54 mm (.100 inch)
- Tail Length: 0.64 mm (.025 inch)
- Tail Finish: Matte Tin and Gold flash on tail
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Applicable for mating with low profile sockets and IDC assemblies
- Dimensions support a compact height of approximately 0.64 mm
- Design allows for optional configurations and lengths
Buy the Buy Samtec TLW Series 13505GD Part Number TLW13505GD Online
Purchase the Samtec TLW Series Low-Profile Header connectors online for your space-sensitive projects. Offering excellent current capacity of 5.2A per pin, these connectors feature a durable Liquid Crystal Polymer insulator, phosphor bronze terminals, and optional gold or tin plating for enhanced performance. Their compact design supports a height of only 0.64 mm, making them ideal for dense electronic assemblies. With RoHS compliance and lead-free construction, order your TLW Series header connectors today to ensure reliable, compact, and high-quality connections for your advanced electronic applications.
Order your Samtec Series TLW13505GD today and ensure your electronic systems benefit from reliable, compact, and high-current connection solutions.
Frequently Asked Questions
Where can I buy SAMTEC TLW13505GD?
You can click on the BUY or RFQ button to purchase TLW13505GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TLW13505GD?
You can download the TLW13505GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TLW13505GD?
SAMTEC
