SAMTEC TML11002GDSM Connector Assembly
The TML-108-02-G-D-SM is a high-quality surface-mount connector designed for reliable PCB connections in various electronic applications. Featuring black liquid crystal polymer insulation and phosphor bronze terminals with gold or tin plating over nickel, it offers excellent thermal stability from -55°C to +105°C (Tin) and up to +125°C (Gold). This RoHS-compliant component supports SMT coplanarity of 0.15 mm and is compatible with mate connectors SMS and RSM. Suitable for both through-hole and surface-mount designs, ensuring flexible installation options for technicians and engineers. The connector's durable construction and precise specifications make it ideal for demanding electronic assemblies.
SAMTEC TML11002GDSM Connector Assembly Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over 50p" Ni
- Operating Temp Range: -55°C to +105°C with Tin, -55°C to +125°C with Gold
- Insulation Resistance: 5000 MQ min
- RoHS Compliant: Yes
- SMT Lead Coplanarity: 0.15 mm
- Supported Designs: Surface Mount, Right Angle, Through-hole
- Compatible with: SMS, RSM mate connectors
- Lead Height: 1.78 mm (Right Angle), 1.14 mm (Surface Mount), 0.46 mm (Through-Hole)
- Connector Material: Phosphor Bronze
- Physical Dimensions: Various sizes and number of positions (e.g., 050 x No. of positions, 125), Lengths from 1.14 to 4.0 mm
- Packaging and Styles: Standard sizes, non-standard options available upon contact
- Design Features: Bead-Free Solderable, Meets various industry standards
- Certifications: See www.samtec.com/quality for complete recognition details

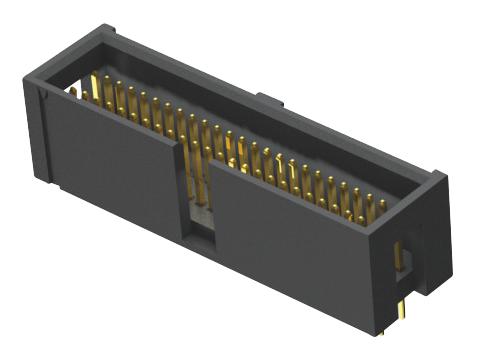

Buy the Buy Samtec TML Series Part Number TML-108-02-G-D-SM Online
Purchase the Samtec TML series connector online today for versatile surface-mount, right angle, and through-hole applications. Designed with durable phosphor bronze terminals and advanced insulation materials, this connector ensures reliable performance across a wide temperature range. Its RoHS compliance and bead-free solderable features make it suitable for high-density electronic assemblies. Available in various sizes and plating options, it's ideal for engineers seeking quality, flexibility, and easy installation in modern electronic projects. Secure yours now for efficient manufacturing or repair tasks.
Buy Samtec TML-108-02-G-D-SM now and experience unmatched reliability and performance in PCB connection solutions.
Frequently Asked Questions
Where can I buy SAMTEC TML11002GDSM?
You can click on the BUY or RFQ button to purchase TML11002GDSM from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TML11002GDSM?
You can download the TML11002GDSM datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TML11002GDSM?
SAMTEC
