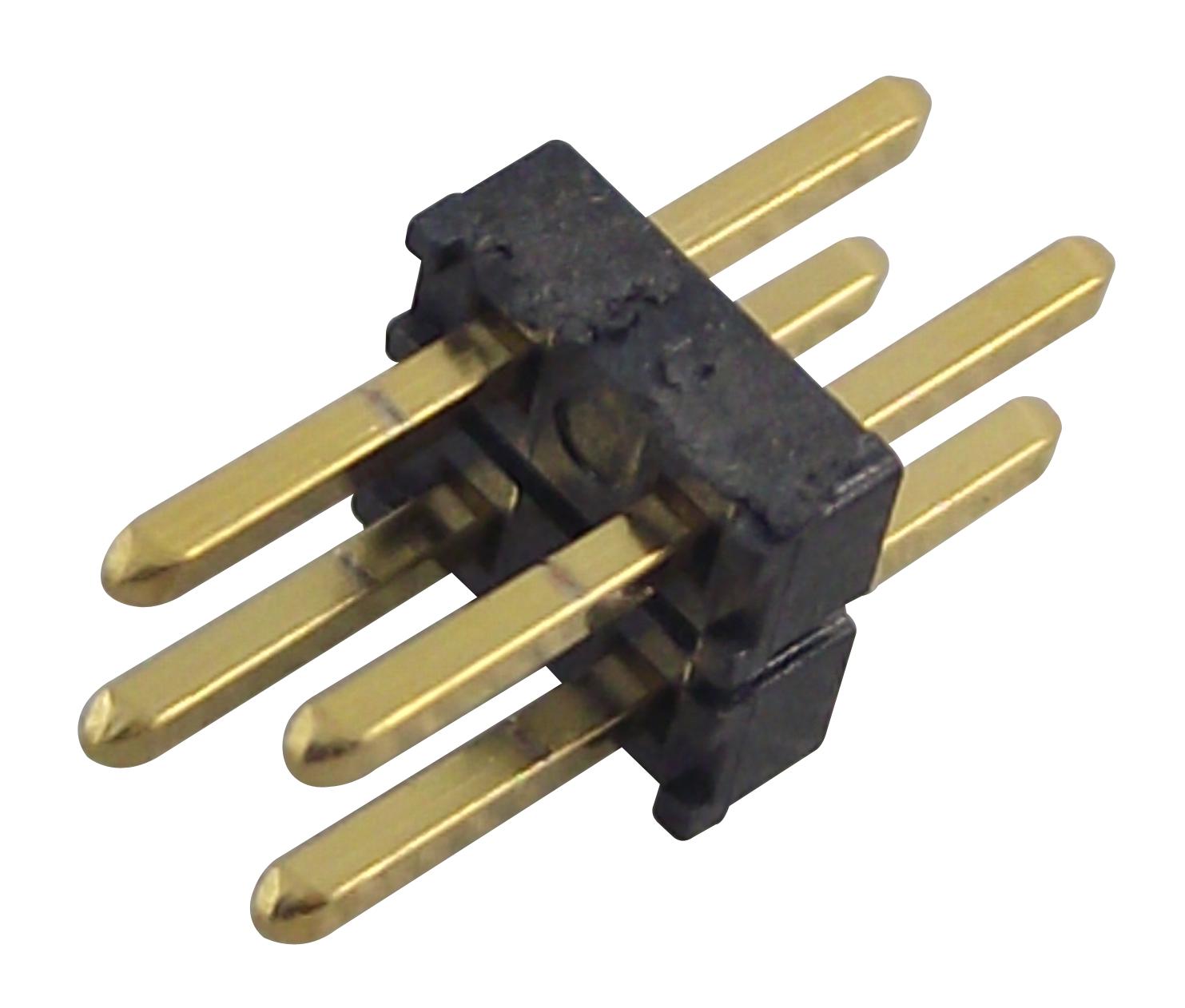

SAMTEC TMM10201GD Electrical Connector
This high-quality electrical connector is designed for easy PCB mounting with optional pick & place pads and alignment pins. With RoHS compliance and a maximum processing temperature of 260°C, it supports lead-free soldering processes. The connector features gold plating for reliable contact performance, optional tape & reel packaging, and through-hole mounting for secure installation. Suitable for applications requiring 5A current ratings at various temperatures, it ensures durability and precise alignment for efficient assembly in electronic devices.
SAMTEC TMM10201GD Electrical Connector Specifications:
- Material: Insulator made of Black Liquid Crystal Polymer, Terminal Material: Phosphor Bronze, Plating: Sn or Au over 50y (1.27um) Ni
- Operating Temp Range: -55°C to +105°C with Tin; -55°C to +125°C with Gold, Voltage Rating: 500 VAC mated with SQW, 450 VAG mated with SQT
- Max Processing Temp: 230°C for 60 seconds, or 260°C for 20 seconds, Lead-Free Solderable: Yes
- RoHS Compliance: Yes, Contact Pitch: 2.00mm, Number of Pins per Row: 2, Connection Type: Through-Hole, Packaging: Tape & Reel, Optional Pick & Place Pads and Alignment Pins
- Current Rating: 5A at 20°C, 4A at 60°C, 3A at 80°C, suitable for electronic assembly, Gold contact plating ensures low contact resistance
- Accuracy and durability are supported by robust construction, making it ideal for reliable circuit connections, compatible with various mating components
Buy the Buy Samtec TMM10201GD Part Number TMM10201GD Online
Purchase the Samtec TMM10201GD online today and benefit from a high-quality, RoHS-compliant PCB connector with gold-plated contacts. Designed for through-hole mounting with optional pick & place pads and alignment pins, it offers reliable electrical performance across temperature ranges. Suitable for applications requiring up to 5A current ratings, the connector features robust construction, lead-free solderability, and tape & reel packaging for efficient handling. Ensure durable, precise, and compliant connections in your electronic projects with this versatile component.
Get Samtec TMM10201GD today—built for precision and long-lasting durability in electronic contacts and PCB connections.
Frequently Asked Questions
Where can I buy SAMTEC TMM10201GD?
You can click on the BUY or RFQ button to purchase TMM10201GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMM10201GD?
You can download the TMM10201GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMM10201GD?
SAMTEC
