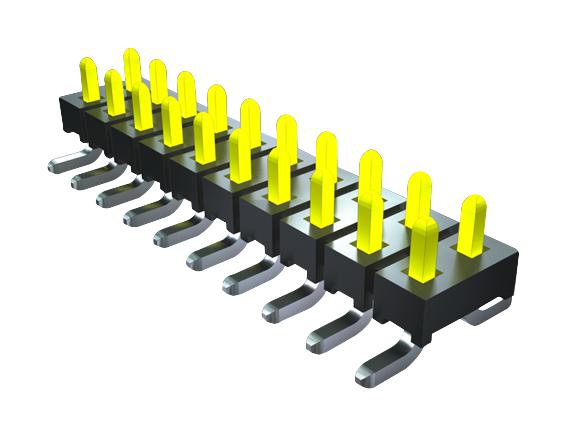

SAMTEC TMM10201LS Board Mates
The TMM series board mates are reliable electrical connectors featuring a black liquid crystal polymer insulator and phosphor bronze terminals plated with Sn or U. The connectors operate efficiently within a temperature range of -55°C to +125°C depending on plating and provide a current rating of up to 3.2 A per pin. Designed for SMT applications with optional pick & place pads, tape & reel packaging, and alignment pins, these connectors are RoHS compliant and suitable for PCB assembly. Available in various configurations for different voltage and pin counts, ensuring high-performance connections in industrial and electronic projects.
SAMTEC TMM10201LS Board Mates Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over 50 µm Ni
- Current Rating: 3.2 A per pin
- Operating Temperature Range: -55°C to +125°C with Gold plating
- Voltage Rating: 250 VAC or 281 VAC depending on mating connector
- Pitch: 2.00 mm (0.0787 inch)
- Number of Positions: Varies (e.g., 2, 4, 20, 40)
- Lead Coplanarity: Yes, for SMT compatibility
- RoHS Compliant: Yes
- Packaging: Tape & Reel, optional Pick & Place pads, and Alignment pins available
- Application: PCB connections, industrial electronics, automation systems, control panels, and communication devices.
Buy the Samtec Series TMM Board Mates: TMM10201LS
Purchase the versatile Samtec Series TMM connector online now for reliable PCB connections in industrial electronics and automation projects. These high-quality board mates feature a black liquid crystal polymer insulator and phosphor bronze terminals plated with Sn or Au over Ni for excellent conductivity and corrosion resistance. Designed for SMT applications, they include optional tape & reel packaging, pick & place pads, and alignment pins, ensuring easy assembly and consistent quality. Suitable for various voltages, current ratings, and pin configurations, these connectors meet RoHS standards, providing durability and dependable performance across diverse electronic systems.
Order your Samtec Series TMM-110-01-S-D-SM today and give your projects the dependable quality they deserve, ensuring high-performance and reliable electrical connections.
