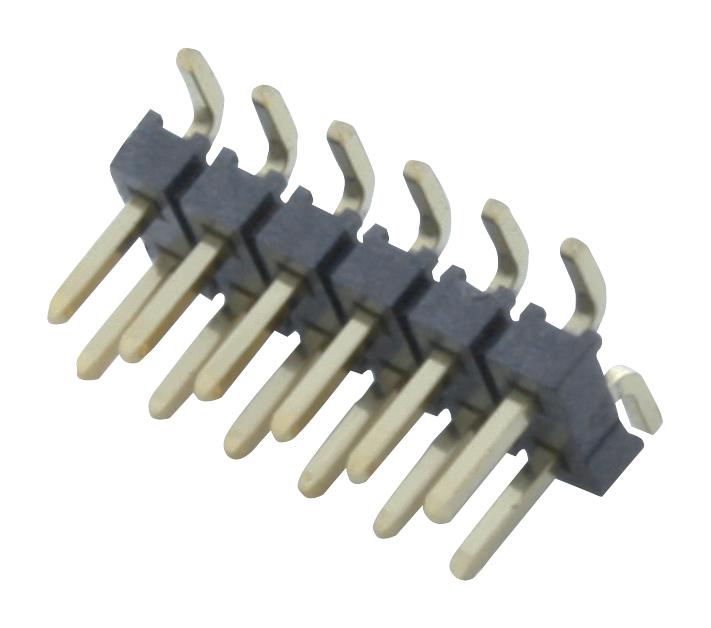

SAMTEC TMM10601GDSM Low Profile Connector
The TMM series by Samtec features low-profile, surface mount terminal strip headers with 2mm pitch spacing and 0.020-inch square posts. Compatible with various Samtec connector series, they support configurations with up to four rows and 200 pins across multiple axes, making them suitable for versatile PCB applications. Constructed with phosphor bronze contacts plated with 20µ-inch gold over nickel, these connectors operate reliably between -55°C and 125°C, handling up to 3.2A current per pin. They feature black liquid crystal polymer insulation, ensuring high-temperature stability. Certified to UL and CSA standards, they are ideal for industrial, automation, and electronic device projects requiring durability and precision.
SAMTEC TMM10601GDSM Low Profile Connector Specifications:
- Pitch: 2mm
- Contact Material: Phosphor Bronze
- Plating: 20µ-inch gold over Ni
- Insulation Material: Liquid Crystal Polymer (Black)
- Operating Temperature: -55°C to +125°C
- Current Rating: 3.2A per pin
- Voltage Rating: 450 VAC mated with SQW, 600 VAC with SQT
- Number of Rows: Up to 4
- Number of Positions: 3 to 40 per row
- Compatibility: CLT, SQT, SQW, ESQT, TLE, SMM, MMS, TCSD
- RoHS Compliance: Yes
- Features: Optional pick & place pads, alignment pins, tape & reel packaging
- Standards: UL E111594, CSA 090871
Buy the Samtec Series TMM Low Profile Connector: TMM10601GDSM
Discover the high-quality TMM series low-profile surface mount headers from Samtec. Featuring 2mm pitch, phosphor bronze contacts with gold plating, and robust black liquid crystal polymer insulation, these connectors support high-temperature applications from -55°C to +125°C. Rated at 3.2A per pin, they are compatible with a variety of Samtec connector series and offer options like pick & place pads and tape & reel packaging for ease of assembly. Perfect for industrial, electronic, and automation projects, ensure your device reliability with these certified connectors.
Order your Samtec Series TMM TMM10601GDSM today and give your projects the reliable high-temperature PCB connection they deserve.
Frequently Asked Questions
Where can I buy SAMTEC TMM10601GDSM?
You can click on the BUY or RFQ button to purchase TMM10601GDSM from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMM10601GDSM?
You can download the TMM10601GDSM datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMM10601GDSM?
SAMTEC
