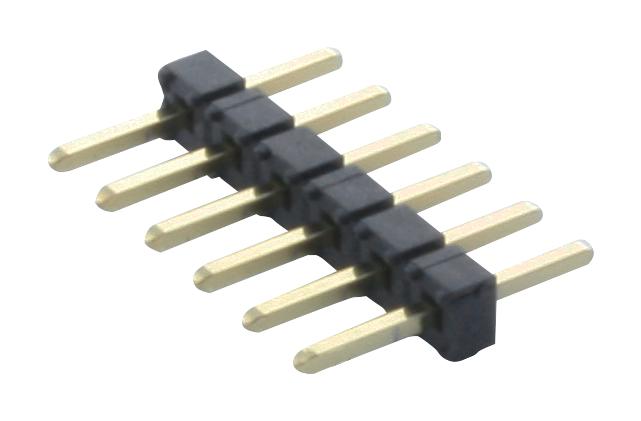

SAMTEC TMM10601GS Low Profile SMT Header
The TMM series low profile SMT header features a 2mm pitch and is designed for reliable PCB connections in compact assemblies. Made from black liquid crystal polymer with phosphor bronze terminals, it offers options with Sn or Au over Ni plating up to 50µ. It supports a current rating of 3.2A per pin, with an operating temperature range of -55°C to +105°C with Tin plating and up to +125°C with Gold. RoHS compliant, the header includes optional features like pick & place pads and tape & reel packaging, ensuring versatile and efficient assembly for electronic circuits.
SAMTEC TMM10601GS Low Profile SMT Header Specifications:
- Pitch: 2.00 mm (.0787 inches)
- Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over 50µ" Ni
- Current Rating: 3.2A per pin
- Operating Temperature: -55°C to +105°C with Tin; -55°C to +125°C with Gold
- RoHS Compliant: Yes
- SMT Lead Coplanarity: < 0.006 inches
- Supported mating connectors: SQW, SQT, CLT, ESQT
- Optional features: Pick & Place Pads, Tape & reel packaging
- Part Number: TMM10601GS
Buy the Samtec Series TMM Low Profile SMT Header: TMM10601GS
Upgrade your electronic assembly process by ordering the Samtec Series TMM10601GS low profile SMT header online. Featuring a 2mm pitch, gold or tin plating options, and RoHS compliance, this header ensures reliable and efficient PCB connections. Its compact, low-profile design is perfect for space-constrained applications. With optional pick & place pads and tape & reel packaging, it offers quick and easy installation, saving time and reducing costs. Trust Samtec quality for your industrial, automation, or electronic device projects.
Order your Samtec Series TMM10601GS low profile SMT header today and enhance your electronic projects with dependable PCB connection solutions.
Frequently Asked Questions
Where can I buy SAMTEC TMM10601GS?
You can click on the BUY or RFQ button to purchase TMM10601GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMM10601GS?
You can download the TMM10601GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMM10601GS?
SAMTEC
