SAMTEC TMM10801GSRA through-hole header
The TMM10801GSRA is a through-hole low-profile header designed for PCB applications, featuring gold flash plating on lead, black liquid crystal polymer insulator, and phosphor bronze terminals. It offers a current rating of 2A per contact, operating temperatures from -55°C to +125°C, and a voltage rating of 281 VAC mated with S gang and 350 VAC with ST position. Suitable for polarized connections, it includes optional retention clips and is manufactured for lead-free, solderable assembly with various length and style options for versatile electronic component integration.
SAMTEC TMM10801GSRA through-hole header Specifications:
- Type: Through-hole, low-profile header
- Lead Material: Phosphor Bronze
- Plating: Gold flash, Matte Tin on tail
- Insulator: Black Liquid Crystal Polymer
- Operating Temperature: -55°C to +125°C
- Voltage Rating: 281 VAC with S gang, 350 VAC with ST position
- Current Rating: 2A per contact
- Pitch: 2.00 mm (0.079 inches)
- Number of Positions: 2 to 12 (varies with option)
- Lead-Free Solderable: Yes
- Style: Post, polarized, optional retention clip
- Partial lengths and configurations available for customization
- Mechanical: Retention clip option, optional non-standard and non-returnable styles

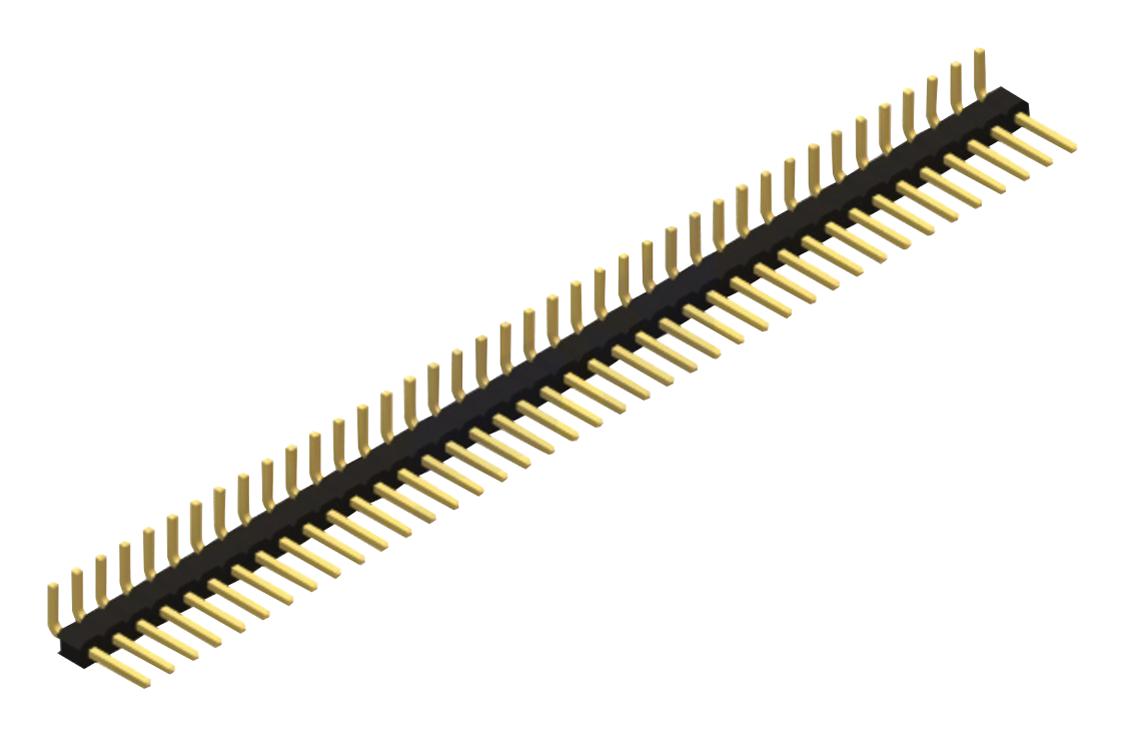

Buy the Buy Samtec TMM10801GSRA Part Number TMM10801GSRA Online
Discover the TMM10801GSRA low-profile through-hole header designed for PCB applications, featuring gold flash plating on contacts, high-temperature operation, and a durable black liquid crystal polymer insulator. Supports up to 2A current per contact, with a voltage rating of 281 to 350 VAC. Its polarized, solderable design ensures secure connections in various electronic assemblies, with options for retention clips and customizable lengths. Perfect for engineers seeking reliable, high-quality connectors with versatile configuration options for demanding electronic projects.
Buy Samtec TMM10801GSRA now and experience reliable high-temperature performance with lead-free, polarized headers for versatile PCB connections.
Frequently Asked Questions
Where can I buy SAMTEC TMM10801GSRA?
You can click on the BUY or RFQ button to purchase TMM10801GSRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMM10801GSRA?
You can download the TMM10801GSRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMM10801GSRA?
SAMTEC
