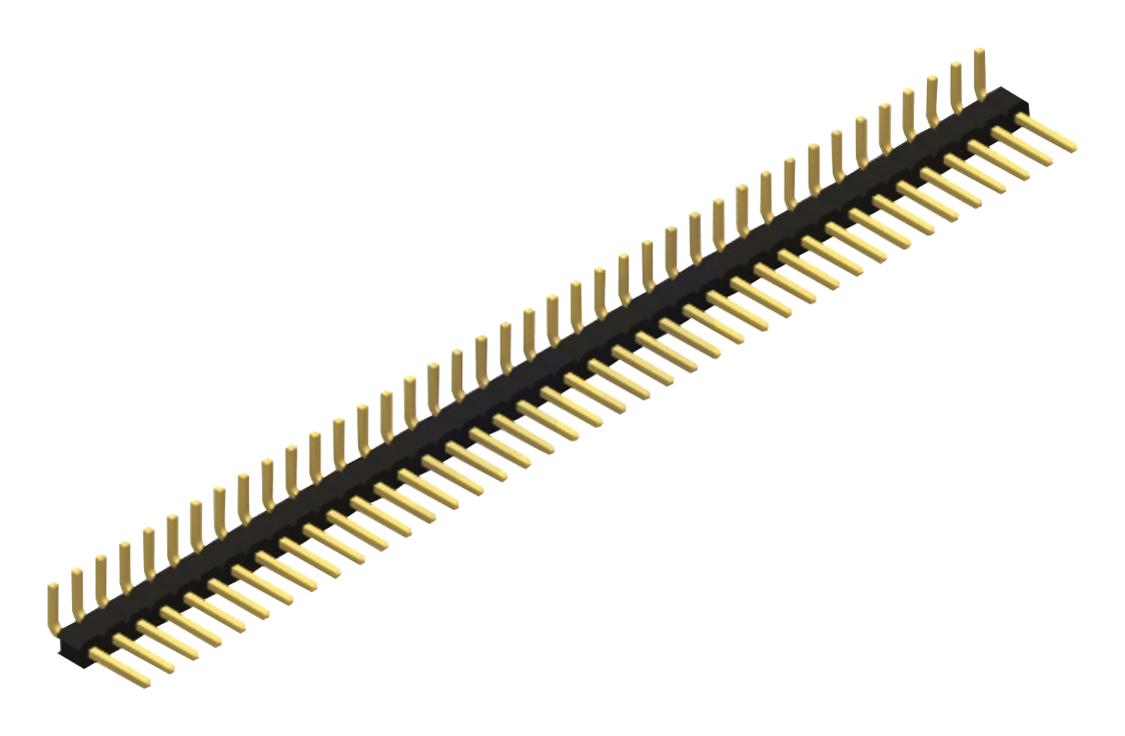

SAMTEC TMM10801SSRA Board-to-Board Header
The Through-Hole Low-Profile Header provides reliable board-to-board connections with a low-profile design suitable for compact industrial applications. Featuring a 3.21 mm pitch, gold-plated phosphor bronze contacts, and liquid crystal polymer insulation, it offers robust performance with a current rating of 3.2 A per circuit in double-row configurations. The header supports lead-free soldering, operates within a temperature range of -55°C to +125°C, and is available with polarized or non-polarized options. Versatile for various cable mate configurations, it ensures secure, long-lasting connections in demanding environments.
SAMTEC TMM10801SSRA Board-to-Board Header Specifications:
- Pitch: 3.21 mm
- Material: Phosphor Bronze
- Insulator Material: Liquid Crystal Polymer (Black)
- Plating: Gold (0.76 μm) on contact, Nickel (1.27 μm) on post, Tin on tail
- Current Rating: 3.2 A per circuit in double-row configuration
- Operating Temperature Range: -55°C to +125°C
- Solderability: Lead-Free, Yes
- Lead Style: Matte Tin on tail, option for Gold on post
- Voltage Rating: 250 VAC
- Configuration: Polarized and non-polarized, Right-angle options available
- Other Options: Retention clip, various lengths and plating options
Buy the Samtec TMM10801SSRA – Reliable Board-to-Board Connector for Industrial Applications
Purchase the Samtec TMM10801SSRA today to ensure reliable, space-efficient connections in your industrial applications. This low-profile connector features gold-plated phosphor bronze contacts, a 3.21 mm pitch, and lead-free soldering capability. Its durable construction withstands temperature extremes from -55°C to +125°C, making it suitable for demanding environments. Whether you need polarized or non-polarized options, the TMM10801SSRA offers versatility with secure retention clips and various plating options. Order now for quality, performance, and durability in your electronic assemblies!
Get Samtec TMM10801SSRA today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC TMM10801SSRA?
You can click on the BUY or RFQ button to purchase TMM10801SSRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMM10801SSRA?
You can download the TMM10801SSRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMM10801SSRA?
SAMTEC
