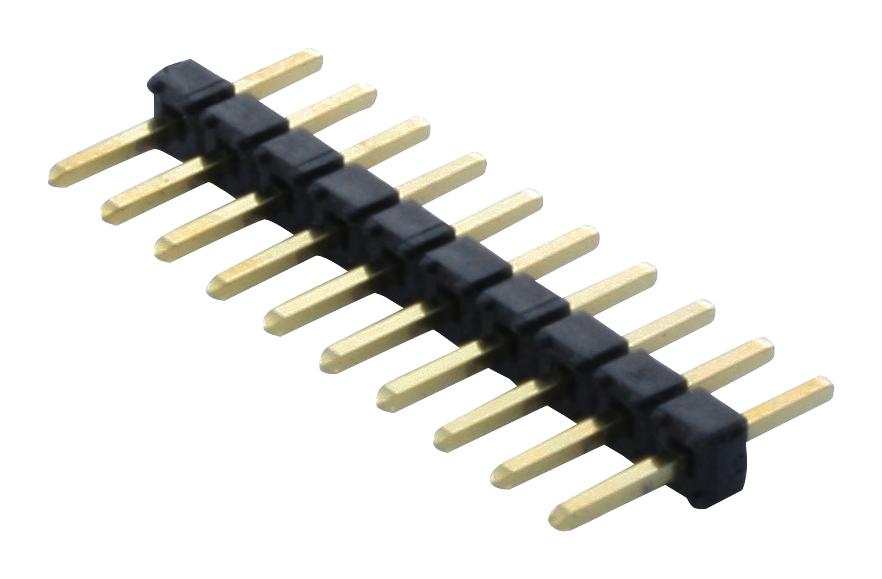

SAMTEC TMM11001GS Terminal Header
The TMM series by Samtec features low-profile, flexible terminal strip headers designed for through-hole mounting in industrial applications. These unshrouded headers have 0.020 inch (0.50mm) square posts and 2mm pitch spacing, compatible with series like CLT, SQT, SQW, ESQT, TLE, SMM, MMS, and TCSD. Available in up to four rows with options for different lengths, they operate within -55°C to 125°C. Constructed with phosphor bronze contacts, gold-plated for durability, and supported by a black liquid crystal polymer insulator, these headers meet UL and CSA standards.
SAMTEC TMM11001GS Terminal Header Specifications:
- Pitch: 2 mm
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50u" Ni, options for matte tin or gold
- Operating Temp Range: -55°C to +125°C
- Insulator Material: Black Liquid Crystal Polymer
- Contact Rating: 3.2 A per pin
- Features: Compatible with multiple connector series, optional pick & place pads, tape & reel packaging
- Max Part Length: varies, options for different terminal lengths, typically up to 6.60 mm
- UL and CSA compliant: UL E111594, CSA 090871
- Mounting: Horizontal PCB mount, suitable for industrial environments
Buy the Samtec TMM11001GS – Reliable Terminal Headers for Industrial Applications
Order the Samtec TMM11001GS terminal headers online today and ensure reliable connection solutions for your industrial applications. These low-profile headers are perfect for through-hole mounting, featuring 2mm pitch spacing, gold-plated contacts, and thermally stable insulators. Their compatibility with various connector series, along with optional pick & place pads and tape and reel packaging, makes assembly efficient. Designed to operate from -55°C to 125°C, these headers offer high current ratings and meet UL and CSA standards, guaranteeing quality and long-term performance for your electronic projects.
Get Samtec TMM11001GS today—built for precision, durability, and high-temperature performance in industrial PCB designs.
Frequently Asked Questions
Where can I buy SAMTEC TMM11001GS?
You can click on the BUY or RFQ button to purchase TMM11001GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMM11001GS?
You can download the TMM11001GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMM11001GS?
SAMTEC
