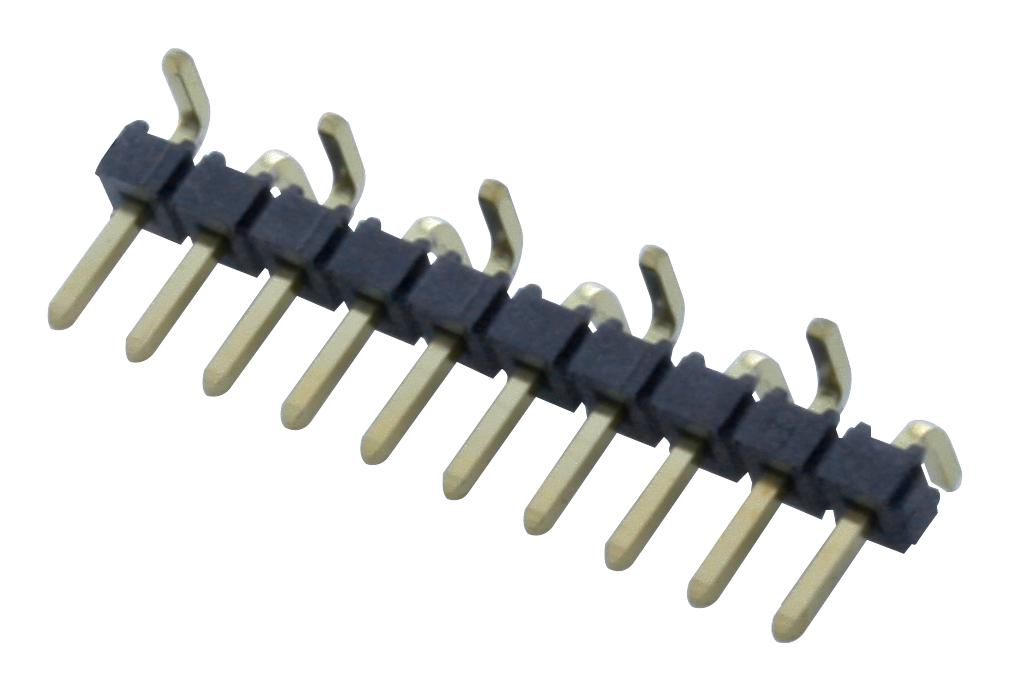

SAMTEC TMM11001GSSM Low-Profile Terminal Header
The TMM series from Samtec features low-profile, surface mount terminal strip headers with 2mm pitch, compatible with connectors like CLT, SQT, and SQW. Made from black liquid crystal polymer with phosphor bronze contacts plated in gold, they support up to four rows and 200 pins, suited for high-temperature environments from -55°C to 125°C. With a maximum current of 3.2A per contact, these headers are ideal for industrial automation and electronic applications needing reliable, compact connections. Various lengths, configurations, and optional features like pick & place pads enhance versatility and ease of assembly.
SAMTEC TMM11001GSSM Low-Profile Terminal Header Specifications:
- Pitch: 2mm
- Contact Material: Phosphor Bronze
- Plating: 20µ” Gold over 50µ” Nickel
- Insulator Material: Black Liquid Crystal Polymer
- Operating Temperature Range: -55°C to +125°C
- Current Rating: 3.2A per contact
- Number of Rows: Up to 4
- Number of Positions: 2 to 40 per row
- Interface Compatibility: Samtec connectors including CLT, SQT, SQW, ESQT, TLE, SMM, MMS, TCSD
- RoHS Compliant: Yes
- Voltage Rating: 450 VAC mated with SQW, 450 VAC with SQT
- Packaging: Tape & reel, optional pick & place pads
- Certifications: UL E111594, CSA 090871
Buy the Samtec TMM11001GSSM – Reliable Low-Profile Surface Mount Terminal for Industrial Applications
Purchase the Samtec Low-Profile Terminal Header today for high-reliability, compact design, and excellent electrical performance in industrial and automation projects. Designed with a 2mm pitch, gold-plated contacts, and capable of handling up to 3.2A per contact, this surface-mount connector offers versatility with various configurations and optional features such as pick & place pads. Suitable for high-temperature environments from -55°C to +125°C, it is RoHS compliant and ideal for demanding electronic applications requiring durable and stable connections, ensuring efficient assembly and long-term operation.
Get Samtec TMM11001GSSM today—built for precision and long-lasting durability in industrial electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC TMM11001GSSM?
You can click on the BUY or RFQ button to purchase TMM11001GSSM from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMM11001GSSM?
You can download the TMM11001GSSM datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMM11001GSSM?
SAMTEC
