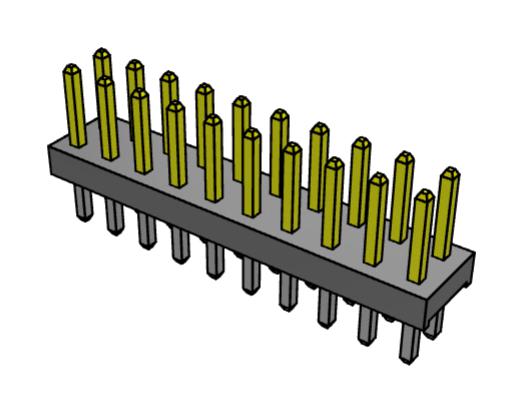

SAMTEC TMM11003FD Low-Profile Through-Hole Header
The Through-Hole Low-Profile Header features a 3.21mm pitch and a gold flash lead plating for reliable connections in industrial electronics. It has a matte tin finish on the tail with phosphor bronze terminals and a gold-on-post insulator. Designed for high temperature and voltage ratings, it operates from -55°C to +125°C and withstands up to 350 VAC when mated in the correct position. Suitable for applications requiring polarized, lead-free, and solderable connectors with options for retention clips, this header ensures secure, durable connections in demanding environments.
SAMTEC TMM11003FD Low-Profile Through-Hole Header Specifications:
- Pitch: 3.21mm
- Lead Plating: Gold flash
- Tail Finish: Matte Tin
- Insulator Material: Gold on post, Black liquid crystal polymer matte finish
- Terminal Material: Phosphor bronze
- Operating Temp Range: -55°C to +125°C
- Voltage Rating: Up to 350 VAC
- Current Rating: 2A per contact
- Operating Environment: Industrial electronics, high-temperature applications
- Connector Style: Through-hole, polarized, right-angle
- Lead-Free Solderable: Yes
- Features: Retention clip option, various lengths and styles
Buy the Samtec TMM11003FD – Reliable Through-Hole Low-Profile Header for Industrial Applications
Purchase the Samtec TMM11003FD low-profile through-hole header online today and enjoy dependable, high-quality connections for industrial electronic solutions. Designed with a 3.21mm pitch and gold flash plating, this header offers excellent conductivity and corrosion resistance. Its high-temperature range from -55°C to +125°C and voltage capacity up to 350 VAC make it suitable for demanding applications. Easy to solder and available with optional retention clips, this connector ensures secure, reliable performance in manufacturing and electronics assembly. Order now for fast delivery and consistent quality.
Order your Samtec Series TMM11003FD high-quality through-hole header today and ensure durable, high-performance connections for your industrial projects.
Frequently Asked Questions
Where can I buy SAMTEC TMM11003FD?
You can click on the BUY or RFQ button to purchase TMM11003FD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMM11003FD?
You can download the TMM11003FD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMM11003FD?
SAMTEC
