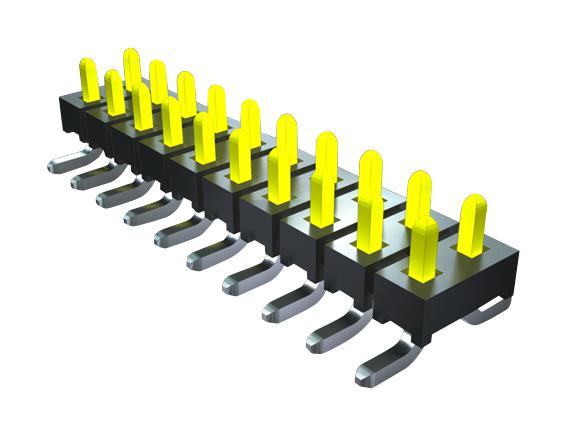

SAMTEC TMM11202GD Terminal Header
The TMM series from Samtec features low-profile, unshrouded through-hole terminal strip headers with a 2mm pitch, suitable for industrial applications. These high-quality connectors have a 0.020-inch (0.50mm) square post, compatible with various Samtec series like CLT, SQT, SQW, and more. They support configurations with up to four rows and 200 pins, with operating temperatures from -55°C to 125°C. Made from phosphor bronze with a liquid crystal polymer insulator, they provide reliable current capacity of 3.2A, and are UL and CSA compliant for safe PCB mounting in diverse environments.
SAMTEC TMM11202GD Terminal Header Specifications:
- Insulator Material: Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over Ni (50 yp" 1.27 um)
- Current Rating: 3.2A per pin (2 pins powered)
- Operating Temperature Range: -55°C to +105°C with Tin; -55°C to +125°C with Gold
- Voltage Rating: 281 VAC with SQW, 250 VAC with SQT
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: Max 0.006" (0.15 mm)
- Pitch: 2 mm (0.0787")
- Number of positions: up to 200 pins
- Mounting Style: Horizontal PCB mount
- Certifications: UL Listed, CSA Certified
Buy the Samtec TMM11202GD – Reliable Terminal Headers for Industrial Applications
Purchase the Samtec TMM series terminal headers online today for reliable PCB connections. Featuring 2mm pitch, high temperature capabilities up to 125°C, and UL/CSA safety approvals, these connectors ensure secure, durable, and versatile mounting solutions suitable for a wide range of industrial, automation, and electronic applications. Easy to install, fully compliant with RoHS standards, and available with optional features such as pick-and-place pads and tape & reel packaging, making your assembly process efficient and hassle-free.
Order your Samtec Series TMM11202GD today and give your projects the dependable quality they deserve with versatile configurations and high temperature support.
Frequently Asked Questions
Where can I buy SAMTEC TMM11202GD?
You can click on the BUY or RFQ button to purchase TMM11202GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMM11202GD?
You can download the TMM11202GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMM11202GD?
SAMTEC
