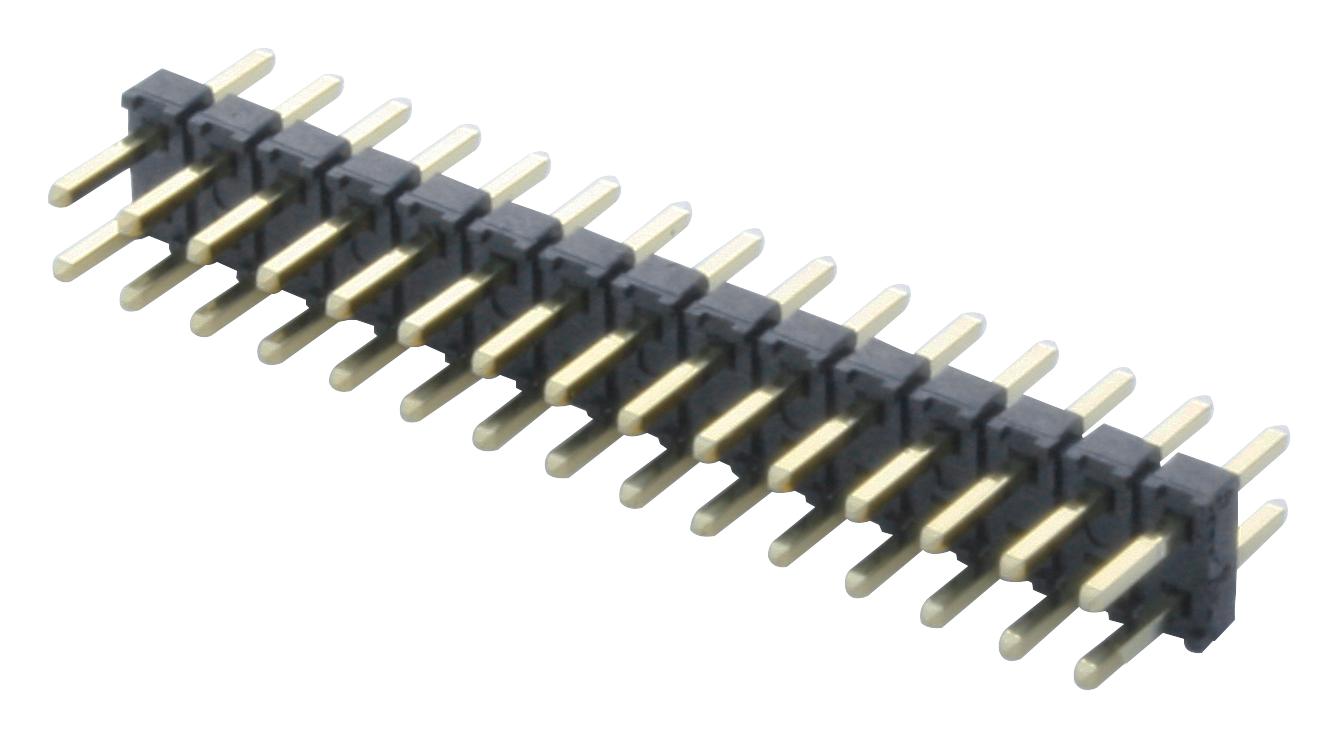

SAMTEC TMM11501GD Low-profile PCB Header
The TMM series from Samtec features FleXYZ low-profile terminal strip headers for versatile PCB connections, offering flexible, reliable, and compact solutions. These unshrouded through-hole headers include a 0.020 inch (0.50 mm) square post, compatible with Samtec series like CLT, SQT, SQW, ESQT, TLE, SMM, MMS, and TCSD. Designed for all three axes, they accommodate up to four rows and 200 pins, with options for single, dual, or four-row configurations. Made from phosphor bronze with gold or tin plating, rated for 3.2A, housed in black liquid crystal polymer, they operate from -55°C to 125°C, ideal for industrial and automation applications.
SAMTEC TMM11501GD Low-profile PCB Header Specifications:
- Pitch: 2.00 mm (0.0787 inch)
- Post Size: 0.020 inch (0.50 mm) square
- Material: Phosphor bronze
- Plating Options: Gold over Ni, Tin, Matte Tin
- Current Rating: 3.2A per pin
- Operating Temperature Range: -55°C to +125°C
- Housing Material: Black Liquid Crystal Polymer
- Compatibility: Series including CLT, SQT, SQW, ESQT, TLE, SMM, MMS, TCSD
- Mounting: Horizontal mounting on PCB
- Standards: RoHS compliant, UL and CSA recognized
- Configurations: Single, Dual, Four-row options, up to 200 pins
- Feature: Optional pick & place pads, alignment pins, tape & reel packaging
Buy the Samtec Series TMM PCB Header: TMM11501GD
Experience the reliability and versatility of Samtec’s Low-profile PCB headers. Designed with a 2 mm pitch, rated for 3.2A, and capable of supporting up to 200 pins, these headers are suitable for industrial, automation, and electronic equipment. They feature a durable phosphor bronze construction with gold or tin plating, operate from -55°C to 125°C, and are compatible with multiple Samtec series. Easily order these high-quality connectors online and ensure secure, efficient PCB mounting with flexible configurations and options for pick-and-place or tape and reel packaging.
Get Samtec TMM11501GD today—built for precision, versatility, and long-lasting durability in PCB connections.
Frequently Asked Questions
Where can I buy SAMTEC TMM11501GD?
You can click on the BUY or RFQ button to purchase TMM11501GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMM11501GD?
You can download the TMM11501GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMM11501GD?
SAMTEC
