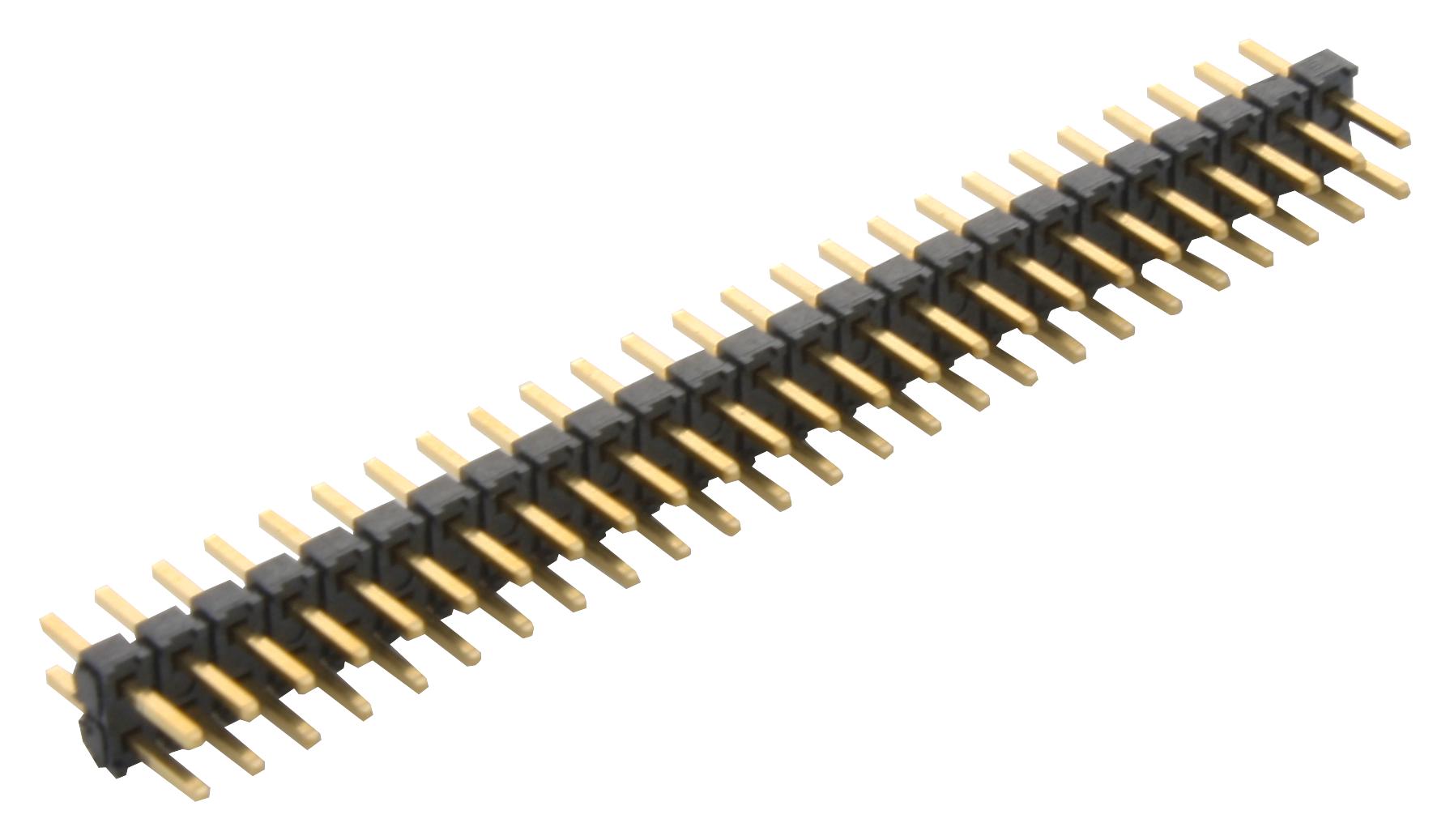

SAMTEC TMM12501GD Terminal Header
The TMM series from Samtec features FleXYZ low-profile terminal strip headers designed for versatile, flexible connections in industrial environments. These unshrouded through-hole headers with 2 mm pitch and 0.0787 inch (2.00 mm) posts support configurations with up to four rows and 200 pins. Made from phosphor bronze with 20-micron gold over Ni plating, housed in a black liquid crystal polymer insulator, they withstand temperatures from -55°C to 125°C. Capable of carrying 3.2A per pin, these headers support high-reliability applications with UL and CSA certification, ideal for compact PCB assemblies in automation and control systems.
SAMTEC TMM12501GD Terminal Header Specifications:
- Pitch: 2 mm (0.0787 inches)
- Post Size: 0.020 inch (0.50 mm) square
- Material: Phosphor bronze
- Plating: 20-micron gold over Ni
- Insulator Material: Black liquid crystal polymer
- Current Rating: 3.2A per pin
- Operating Temperature: -55°C to +125°C
- Configuration: 1, 2, or 4 rows, up to 200 pins
- Mounting Type: Horizontal PCB mount
- Certification: UL Listed, CSA Certified
- Maximum mating cycles: see manufacturer datasheet for precise info.
- RoHS Compliant: Yes
Buy the Samtec TMM12501GD – Reliable Terminal Headers for Industrial Applications
Purchase the Samtec Terminal Header designed for industrial PCB connections, featuring 2 mm pitch, gold-plated contacts, and high temperature resilience. These headers accommodate up to 200 pins in configurations of one, two, or four rows, supported by a black liquid crystal polymer insulator. They support operating temperatures from -55°C to +125°C and carry 3.2A per pin, ideal for automation, control panels, and compact electronic assemblies. Easy to mount on PCB, RoHS compliant, and UL/CSA certified, ensuring reliable and safe operation for demanding industrial environments.
Get Samtec TMM12501GD today—built for versatile connectivity, high temperature tolerance, and long-lasting durability in industrial systems.
Frequently Asked Questions
Where can I buy SAMTEC TMM12501GD?
You can click on the BUY or RFQ button to purchase TMM12501GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMM12501GD?
You can download the TMM12501GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMM12501GD?
SAMTEC
