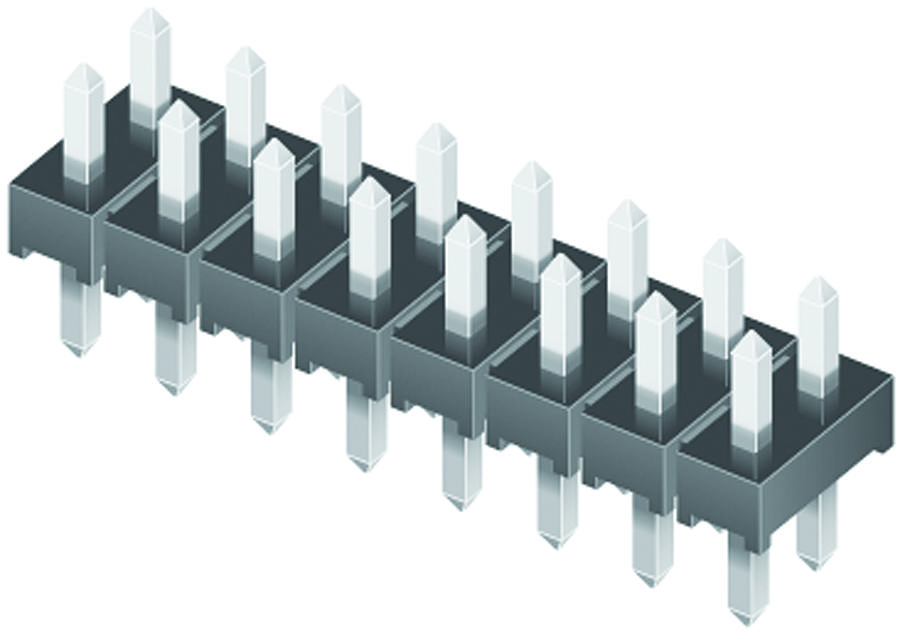

SAMTEC TMM14501GD Low-Profile Terminal Header
The TMM series from Samtec are versatile low-profile terminal strip headers crafted for flexible wiring solutions in industrial and electronic applications. These headers feature 2 mm pitch spacing with square posts of 0.020 inch (0.50 mm), supporting configurations up to four rows and 200 pins. Manufactured from phosphor bronze and plated with gold over nickel, they sustain currents up to 3.2A and operate across temperatures from -55°C to +125°C. The black liquid crystal polymer insulator ensures durability, and the headers mount horizontally to PCBs, making them ideal for complex circuitry and high-temperature environments. RoHS compliant, compatible with multiple connector series, and suitable for precision electronic assemblies.
SAMTEC TMM14501GD Low-Profile Terminal Header Specifications:
- Pitch: 2 mm (0.0787 inches)
- Post Size: 0.020 inch (0.50 mm) square
- Material: Phosphor bronze
- Plating: Gold over nickel (50µ" or Au over 50u" Ni)
- Insulator Material: Black liquid crystal polymer
- Current Rating: 3.2A per pin
- Operating Temperature Range: -55°C to +125°C
- Mounting: Horizontal to PCB
- RoHS Compliance: Yes
- Supported Series: CLT, SQT, SQW, ESQT, TLE, SMM, MMS, TCSD
- Number of Rows: Up to 4
- Number of Positions: Up to 200
- Compatibility: Supports pick & place, tape & reel, with optional alignment pins
- Standards: UL E111594, CSA 090871
Buy the Samtec Series TMM Terminal Headers: TMM14501GD
Enhance your electronic projects with the Samtec Low-Profile Terminal Header from the TMM series. Designed for flexible configurations, these headers feature 2 mm pitch spacing, gold-plated contacts, and a durable liquid crystal polymer insulator. With supporting up to four rows and 200 pins, they are ideal for high-current, high-temperature applications across industrial and electronic equipment. Their horizontal PCB mounting ensures reliable connectivity, while compliance with RoHS and safety standards guarantees quality. Order online today to enjoy fast delivery and trusted performance for your intricate wiring needs.
Get Samtec TMM14501GD today—built for precision, durability, and versatile connectivity in complex electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC TMM14501GD?
You can click on the BUY or RFQ button to purchase TMM14501GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMM14501GD?
You can download the TMM14501GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMM14501GD?
SAMTEC
