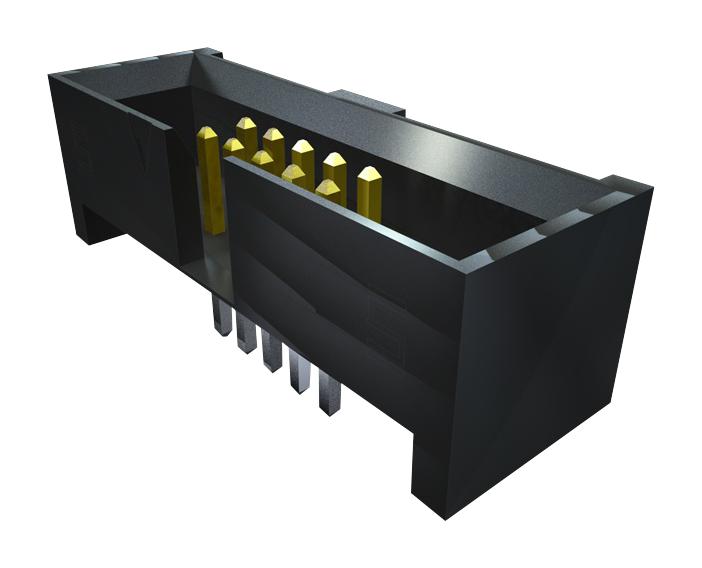

SAMTEC TMMH11001SDEP Flexible Through-Hole Header
The flexible through-hole header offers reliable connectivity with multiple row options and precise pitch of 2.00 mm. Constructed with high-quality insulator and terminal materials, including Black Liquid Crystal Polymer and phosphor bronze, it features high-mating plated contacts of Sn or Au over Ni, ensuring durability and corrosion resistance. Rated for operating temperatures from -55°C to +125°C with Gold plating and up to 105°C with Tin, it supports a maximum voltage of 250-281 VAC. The header's RoHS compliance, lead-free solderability, and optional shrouded and retention clip features make it ideal for complex electronic assemblies requiring robust and customizable connections.
SAMTEC TMMH11001SDEP Flexible Through-Hole Header Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over Ni
- Current Rating: 4.5 A per pin (Tin), 5.1 A per pin (Gold)
- Operating Temp Range: -55°C to +105°C (Sn), -55°C to +125°C (Au)
- Voltage Rating: 281 VAC mated with SQW, 250 VAC mated with SQT
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Pitch: 2.00 mm
- Number of Rows: 2, 3, 4, 5, or 6
- Body Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating Thickness: 50 μ
- (1.27 μm)
- Shrouded Option: Available with optional end shrouds
- Retention Clip Option: Available with -RC
- Temperature Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Voltage Ratings: 250-281 VAC depending on the mating connector
- RoHS and Lead-Free compliant
Buy the Samtec TMMH11001SDEP – Reliable Flexible Through-Hole Header for Industrial Applications
Purchase the Samtec TMMH11001SDEP flexible through-hole header online now to enhance your electronic assemblies with a reliable, high-performance connector. Featuring a 2.00 mm pitch, multiple row configurations, and high-temperature rated materials, this header provides excellent durability and corrosion resistance. RoHS compliant and lead-free, it supports various plating options including gold and tin for optimal contact performance. Easy to install with optional shrouded and retention clip features, it ensures secure connections for industrial and consumer electronics, making your projects more efficient and dependable.
Order your Samtec Series TMMH11001SDEP flexible through-hole header today and ensure robust, customizable connections for your complex electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC TMMH11001SDEP?
You can click on the BUY or RFQ button to purchase TMMH11001SDEP from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMMH11001SDEP?
You can download the TMMH11001SDEP datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMMH11001SDEP?
SAMTEC
