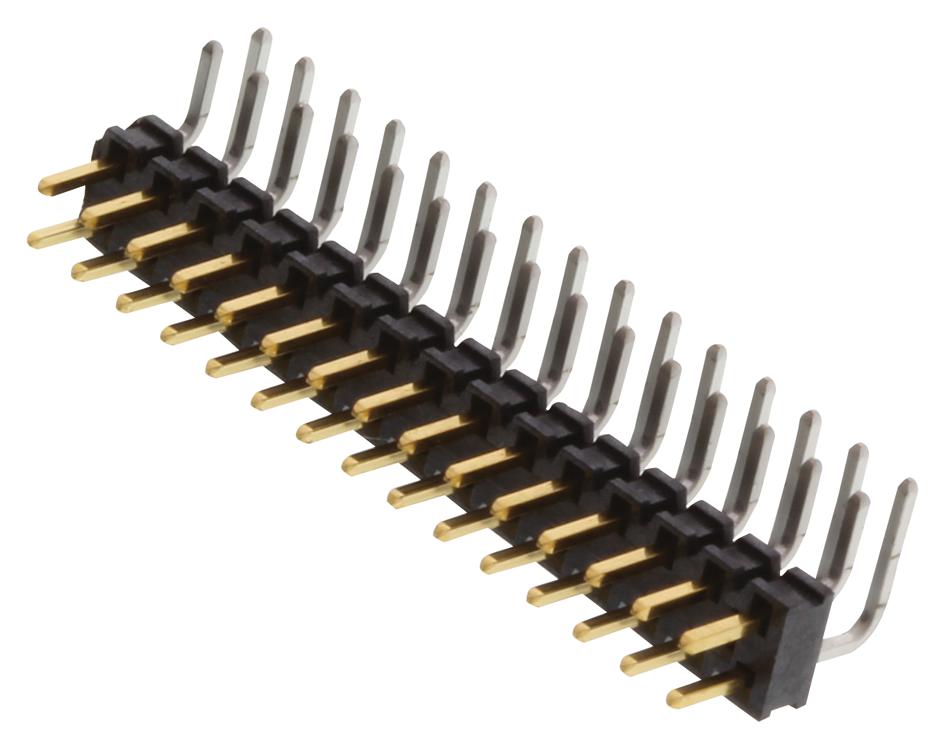

SAMTEC TMMH11501FDRA Flexible Header
The TMMH series from Samtec are flexible, through-hole terminal strip headers designed for versatile board-to-board connections. These headers feature 0.020-inch (0.5mm) square posts and are compatible with multiple Samtec connector series such as CLT, SQT, SQW, ESQT, TLE, SMM, MMS, and TCSD. They offer extensive design flexibility, supporting up to six rows and 300 pins in various configurations, including options with end shrouds, lockings, guide posts, and board locks. The headers are available in multiple terminal lengths and configurations (dual, triple, quadruple, quintuple, and sextuple rows). They have a 2mm pitch spacing with right-angle mounting, operate within -55°C to 125°C temperatures, and are made from phosphor bronze contacts with a black liquid crystal polymer insulator. Designed for horizontal PCB mounting, these headers comply with UL E111594 standards and are suitable for industrial applications.
SAMTEC TMMH11501FDRA Flexible Header Specifications:
- Insulator Material: Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over Ni, 50 μm (1.27 μm) Ni
- Current Rating: 4.5 A per pin (TMMH/ESQT), 5.1 A per pin (TMMESQT)
- Operating Temp Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Voltage Rating: 281 VAC (SQW), 250 VAC (SQT)
- Pitch: 2 mm
- Number of Rows: Up to 6
- Board Mounting: Horizontal and right-angle options
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Compatibility: Supports multiple Samtec series including CLT, SQT, SQW, ESQT, TLE, SMM, MMS, TCSD
- Additional options: End shrouds, lockings, guide posts, board locks
- Certifications: UL Listed (E111594)
Buy the Samtec TMMH Series – Reliable Flexible Through-Hole Headers for Industrial Applications
Purchase the Samtec TMMH flexible through-hole header series online today for versatile, durable, and high-quality board-to-board connections. These headers support up to 6 rows, multiple configurations, and come with options like end shrouds and guide posts. Designed to operate within -55°C to 125°C, they feature oxidation-resistant plating and RoHS compliance. Whether for industrial automation or complex electronic assemblies, these connectors ensure robust performance, easy installation, and compatibility with various Samtec series, making them a perfect solution for demanding applications.
Get Samtec TMMH Series today—built for reliable connections and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC TMMH11501FDRA?
You can click on the BUY or RFQ button to purchase TMMH11501FDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMMH11501FDRA?
You can download the TMMH11501FDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMMH11501FDRA?
SAMTEC
