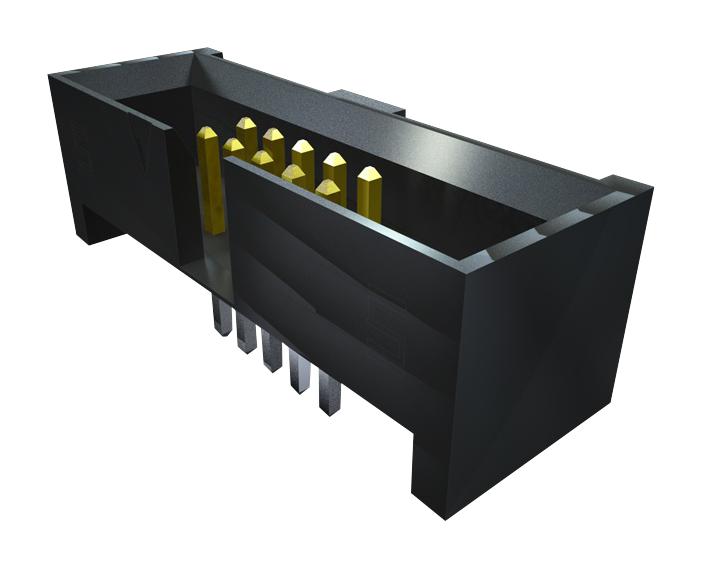

SAMTEC TMMH11501LDES Flexible Through-Hole Header
The flexible through-hole header is designed for PCB board mating with 2, 3, 4, 5, and 6-row configurations on a 2.00 mm pitch. Constructed with Black Liquid Crystal Polymer insulator material and phosphor bronze terminals, it features high mating reliability with Sn or Au over Ni plating. The product supports operating temperatures from -55°C to +105°C with Tin or up to +125°C with Gold, and is RoHS compliant. Suitable for industrial connections, it includes optional features like shrouded and right-angle configurations, with a maximum current rating of 5.1 A per pin.
SAMTEC TMMH11501LDES Flexible Through-Hole Header Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over Ni (50 µ
- 1.27 µm)
- Current Rating: 4.5 A per pin (TMMH/ESQT), 5.1 A per pin (TMMESQT)
- Operating Temp Range: -55°C to +105°C with Tin, -55°C to +125°C with Gold
- Voltage Rating: 281 VAC mated with SQW, 250 VAC mated with SQT
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Pitch: 2.00 mm
- Number of rows: 2 to 6
- Connector configuration options include right-angle and shrouded variants
- Height and dimensions vary by configuration, with optional retention clip and tear features
Buy the Samtec Series TMMH Flexible Through-Hole Header: TMMH11501LDES
Purchase the Samtec TMMH11501LDES flexible through-hole header online today and enhance your electronic assembly with a high-quality, RoHS compliant connector. Designed for PCB board mating with 2 to 6 rows at a 2.00 mm pitch, it features high current ratings, excellent temperature tolerance, and optional configurations like shrouded and right-angle versions. Easy to solder, RoHS compliant, and built with durable materials, this header ensures reliable electrical connections for industrial and electronic projects, making your assembly efficient and durable.
Buy Samtec TMMH11501LDES now and experience unmatched reliability and performance in industrial PCB connections.
