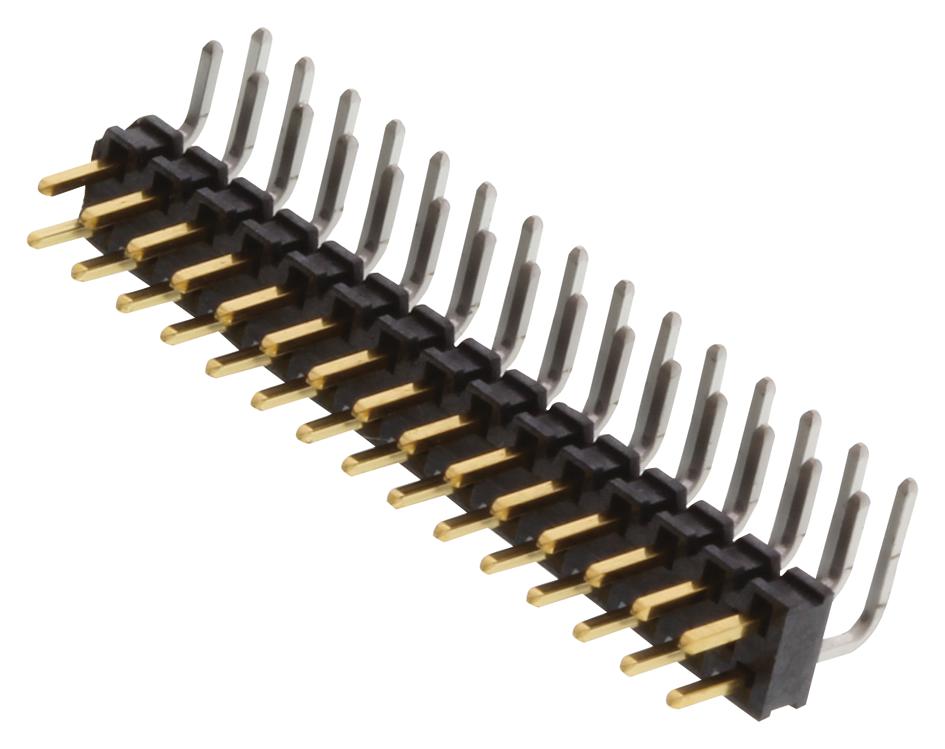

SAMTEC TMMH12601TDRA Flexible Header
The flexible through-hole header features 2 to 6 rows with a 2.00 mm pitch, ideal for board mating in compact electronic assemblies. Constructed with black liquid crystal polymer insulator and phosphor bronze contacts, it offers high mating durability and reliable connections. The header supports optional shrouded or right-angle configurations, with lead-free solders and RoHS compliance. Rated for temperatures from -55°C to +125°C depending on plating, and up to 281 VAC with specific mate options, making it suitable for a variety of industrial and electronic applications.
SAMTEC TMMH12601TDRA Flexible Header Specifications:
- Pins per row: 2 to 6 rows
- Pitch: 2.00 mm
- Contact Material: Phosphor Bronze
- Insulator Material: Liquid Crystal Polymer
- Plating: Tin or Gold over Nickel
- Current Rating: 4.5 A per pin; 5.1 A for two pins powered
- Voltage Rating: 281 VAC mated with SQW; 250 VAC mated with SQT
- Operating Temperature Range: -55°C to +125°C depending on plating
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Configurations: Right-angle, vertical, shrouded options
- Certification: RoHS compliant, UL recognized
- Additional features: optional retention clip, tear-drop non-returnable, contact spacing 2.00 mm, optional end shrouds
Buy the Samtec Series TMMH Flexible Through-Hole Header: TMMH12601TDRA
Purchase the Samtec Flexible Header TMMH12601TDRA now to ensure reliable, high-quality connections in your electronic projects. Designed with a 2.00 mm pitch and multiple row options, it offers excellent durability and temperature tolerance for industrial and commercial use. RoHS compliant and lead-free, this header features robust phosphor bronze contacts and liquid crystal polymer insulation, providing excellent electrical performance and corrosion resistance. Order online today and enhance your assembly's reliability with trusted, high-performance connectors.
Get Samtec TMMH12601TDRA today—built for precision and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC TMMH12601TDRA?
You can click on the BUY or RFQ button to purchase TMMH12601TDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMMH12601TDRA?
You can download the TMMH12601TDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMMH12601TDRA?
SAMTEC
