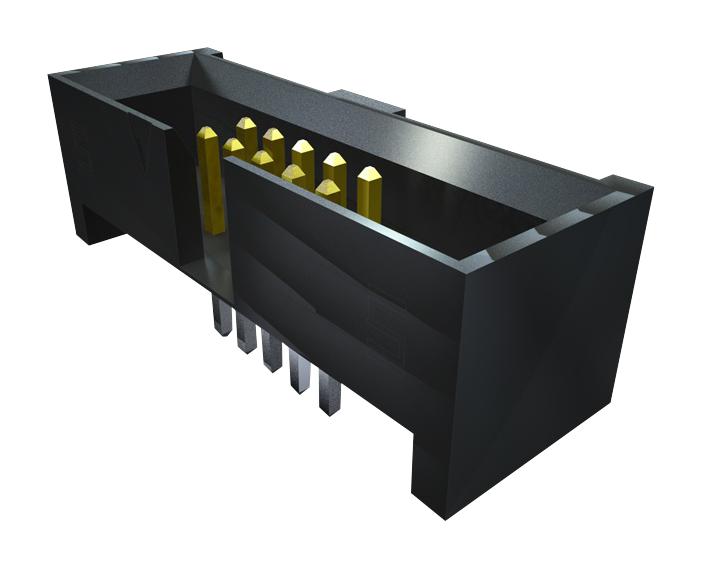

SAMTEC TMMH12701LDES Flexible Through-Hole Header
The flexible through-hole header offers reliable connections with options for multiple rows and shrouded or right-angle configurations, suitable for high-density electronic assemblies. Constructed with black liquid crystal polymer insulators and phosphor bronze terminals, it features high-mating tin or gold plating over nickel for optimal durability. Designed for operating temperatures from -55°C to +105°C or +125°C with gold, it handles up to 4.5A to 5.1A per pin, with a 2.00 mm pitch and optional retention clips, making it ideal for complex circuit board connections in demanding environments.
SAMTEC TMMH12701LDES Flexible Through-Hole Header Specifications:
- Insulator Material: Liquid Crystal Polymer (Black)
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over Ni (50 µm)
- Current Rating: 4.5A per pin; 5.1A for TMMESQT
- Operating Temperature Range: -55°C to +105°C with Tin; -55°C to +125°C with Gold
- Voltage Rating: 281 VAC mated with SQW; 250 VAC with SQT
- Number of rows: 2 to 6
- Pitch: 2.00 mm
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Construction: Through-hole, optional shrouded and right-angle configurations
- Connection Style: TMMH series, compatible with various optional features including end shrouds, lockable formats, and custom lengths
- Compatibility: Suitable for high-density circuit, PCB, and electronic systems
Buy the Buy Samtec TMMH Series Flexible Through-Hole Header Part Number TMMH12701LDES Online
Order the Samtec TMMH12701LDES flexible through-hole header online today to enhance your circuit board assembly with durable, high-performance connectors. Designed with multiple rows, optional shrouded or right-angle options, and high current handling capacity, this connector ensures reliable electrical connections in demanding environments. Its construction includes liquid crystal polymer insulators and phosphor bronze terminals with nickel and gold plating, providing excellent durability and corrosion resistance. Ideal for high-density PCBs, this part supports your electronic system’s reliability and efficient assembly.
Buy Samtec TMMH12701LDES now and experience unmatched reliability and high-density circuit connections in your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC TMMH12701LDES?
You can click on the BUY or RFQ button to purchase TMMH12701LDES from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMMH12701LDES?
You can download the TMMH12701LDES datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMMH12701LDES?
SAMTEC
