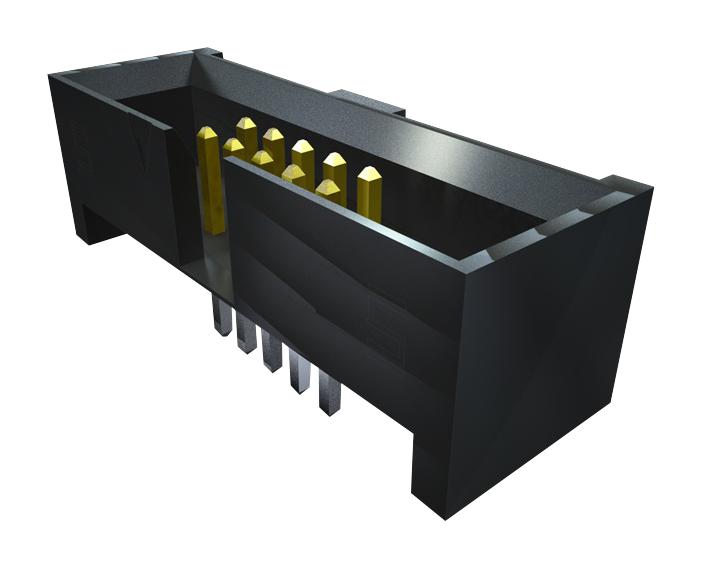

SAMTEC TMMH13001FDES Flexible Through-Hole Header
The flexible through-hole header is designed for high-density electronic assemblies, offering options such as shrouded and right-angle configurations. Made from black liquid crystal polymer insulator and phosphor bronze terminals with high-mating gold or tin plating, it supports current ratings of 4.5 A to 5.1 A per pin. Operating within -55°C to +125°C, it is RoHS compliant, lead-free, and suitable for PCB mounting with 2.00 mm pitch. The header provides reliable electrical connection for complex and demanding electronic applications, structured with multiple rows and optional features for customization.
SAMTEC TMMH13001FDES Flexible Through-Hole Header Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: High Mating Sn or Au over Ni (50 μm / 1.27 μm)
- Current Rating: 4.5 A per pin (TMMH/ESQT), 5.1 A per pin (TMMESQT)
- Operating Temp Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Voltage Rating: 281 VAC mated with SQW, 250 VAC mated with SQT
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Contact Material: Phosphor Bronze
- Board Pitch: 2.00 mm
- Number of Rows: 2 to 6 (options available)
- Configuration: Through-hole, Right-angle, Vertical, optional shrouded versions
- Standards and Recognitions: Multiple, consult Samtec for scope
Buy the Samtec Series TMMH Through-Hole Header: TMMH13001FDES
Order the Samtec Flexible Through-Hole Header TMMH13001FDES online today and enjoy high-quality, RoHS-compliant connectors designed for demanding electronic applications. This header provides reliable electrical connections with options for shrouded or right-angle configurations, supporting current ratings up to 5.1 A per pin. Made from durable liquid crystal polymer and phosphor bronze contacts, it ensures long-lasting performance. Perfect for high-density PCB assemblies requiring precise, customizable connectors that withstand operating temperatures from -55°C to +125°C.
Get Samtec TMMH13001FDES today—built for reliable PCB connection with customizable options and high current capacity.
Frequently Asked Questions
Where can I buy SAMTEC TMMH13001FDES?
You can click on the BUY or RFQ button to purchase TMMH13001FDES from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMMH13001FDES?
You can download the TMMH13001FDES datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMMH13001FDES?
SAMTEC
