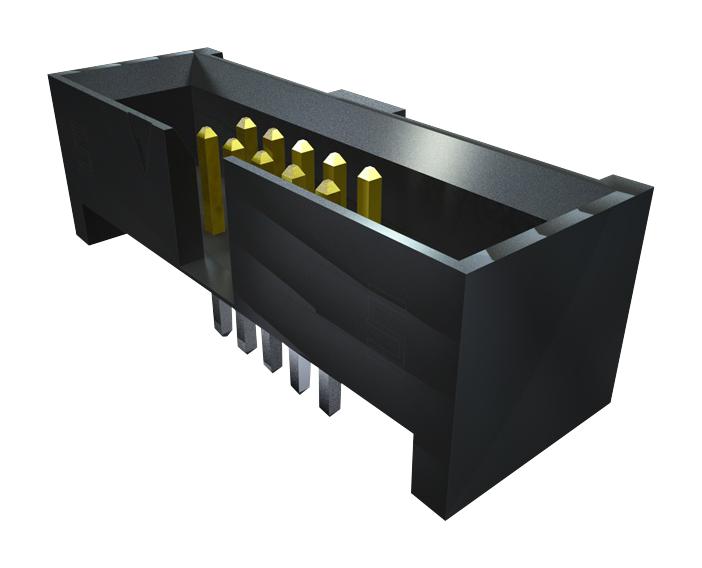

SAMTEC TMMH13301FDES Flexible Through-Hole Header
The flexible through-hole header offers versatile configurations with 2 to 6 rows on a 2.00 mm pitch, ideal for industrial and electronic circuit board connections. Featuring black liquid crystal polymer insulation and phosphor bronze terminals, it supports high current ratings of up to 5.1 A per pin with temperature tolerance from -55°C to +125°C, depending on plating. RoHS compliant and lead-free, it provides reliable mating with high mating and corrosion-resistant gold or tin plating, suitable for demanding electronic applications requiring secure, durable connections.
SAMTEC TMMH13301FDES Flexible Through-Hole Header Specifications:
- Number of rows: 2 to 6 on 2.00 mm pitch
- Insulator Material: Liquid Crystal Polymer (Black)
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over Ni (50 µm or 1.27 µm)
- Current Rating: Up to 5.1 A per pin (with 2 pins powered)
- Operating Temperature Range: -55°C to +125°C (Gold plating), -55°C to +105°C (Tin plating)
- Voltage Rating: 281 VAC (with SQW), 250 VAC (with SQT)
- RoHS Compliant: Yes
- Lead-Free: Yes
- Contact Material: Phosphor Bronze with high mating durability
- Shrouded and optional retainer configurations available
- Designed for through-hole mounting, suitable for high-reliability electronic assemblies
- Compatible with custom and standard board layouts, approved for industrial applications
- Construction supports reflow and wave soldering processes
Buy the Samtec Series TMMH Flexible Through-Hole Header: TMMH13301FDES
Enhance your electronic assembly with our versatile flexible through-hole headers made for high-performance applications. Featuring a robust design with flexible configurations from 2 to 6 rows, 2.00 mm pitch, and high current capacity, these headers support reliable connections in demanding environments. Constructed with black liquid crystal polymer insulation and phosphor bronze terminals, they ensure durability, corrosion resistance, and excellent electrical conductivity. RoHS compliant and lead-free, perfect for industrial, automation, and electronics manufacturing requiring dependable interconnect solutions.
Buy Samtec TMMH13301FDES flexible through-hole header now and experience unmatched reliability and high-current performance.
Frequently Asked Questions
Where can I buy SAMTEC TMMH13301FDES?
You can click on the BUY or RFQ button to purchase TMMH13301FDES from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMMH13301FDES?
You can download the TMMH13301FDES datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMMH13301FDES?
SAMTEC
