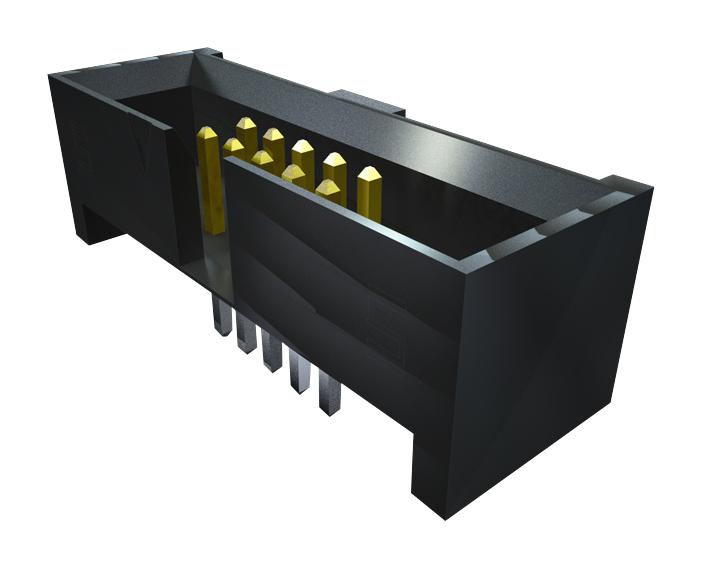

SAMTEC TMMH14501FDES Flexible Through-Hole Header
The flexible through-hole header is designed for board-mate applications with options for 2, 3, 4, 5, and 6 rows at a 2.00 mm pitch. Constructed with a black liquid crystal polymer insulator and phosphor bronze contacts, the header features high-quality tin or gold plating over nickel for enhanced durability and corrosion resistance. It supports voltages up to 281 VAC, current ratings of 4.5 A per pin with Tin and 5.1 A with Gold, and operates effectively between -55°C to +125°C. RoHS compliant and suitable for various shrouded and right-angle configurations.
SAMTEC TMMH14501FDES Flexible Through-Hole Header Specifications:
- Insulator Material: Liquid Crystal Polymer (Black)
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over Ni (50 µm or 1.27 µm)
- Current Rating: 4.5 A per pin (Tin), 5.1 A (Gold)
- Operating Temp Range: -55°C to +125°C
- Voltage Rating: 281 VAC mated with SQW, 250 VAC mated with SQT
- Pitch: 2.00 mm
- Contact Density: 2 to 6 rows
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Accepts various optional shrouds and retention clips for secure mating
- Designed for through-hole PCB mounting with optional right-angle or vertical orientation
- Partially customizable with different plating, shroud, and lock options for specific needs
Buy the Buy Samtec TMMH14501FDES Part Number TMMH14501FDES Online
Purchase the Samtec flexible through-hole header online today for reliable, high-quality connections suitable for a variety of electronic assemblies. This component features versatile configurations with multiple rows at a 2.00 mm pitch, accommodating high current ratings up to 5.1 A per pin when gold plated. Its construction with liquid crystal polymer insulator and phosphor bronze contacts ensures durability and resistance to extreme temperatures from -55°C to +125°C. RoHS compliant and compatible with various optional shroud and retention clip add-ons, making it ideal for secure, flexible PCB connections.
Get Samtec TMMH14501FDES today—built for precise board connections and high durability in demanding electronic applications.
Frequently Asked Questions
Where can I buy SAMTEC TMMH14501FDES?
You can click on the BUY or RFQ button to purchase TMMH14501FDES from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMMH14501FDES?
You can download the TMMH14501FDES datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMMH14501FDES?
SAMTEC
