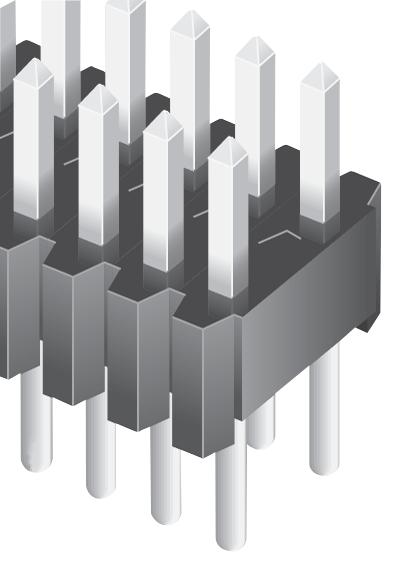

SAMTEC TMS10560SD Micro Connector
The TMS-110 series from Samtec features high-performance, RoHS-compliant connectors made of black Liquid Crystal Polymer insulators and phosphor bronze terminals. These connectors support operating temperatures from -55°C to +125°C with gold plating options, optional lead-free solderability, and various plating configurations including Au or Sn over 50 µm Ni. Designed for reliable connections in industrial applications, they mate with SMS, SLM, and RSM series, ensuring durability, versatility, and compliance with safety standards. Suitable for through-hole and surface mount configurations, they are essential for modern electronic assemblies requiring robust, high-temperature capable interconnects.
SAMTEC TMS10560SD Micro Connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over 50 μm Ni
- Current Rating: 5A per pin
- Operating Temp Range: -55°C to +125°C
- Lead Size Accepted: 0.46 mm .018" SQ
- Insertion Depth: 3.43 mm .135" minimum
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Compatible Series: SMS, SLM, RSM
- Body Material: Black Glass Filled Polyester (SNM series)
- Max Processing Temp: Not recommended for IR/VP
