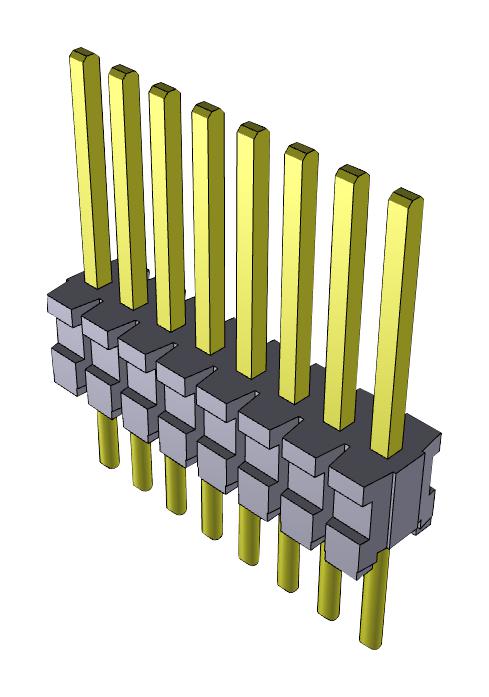

SAMTEC TMS10801GS Terminal Connector
The TMS-132-51-G-S is a flexible, high-temperature terminal connector made from black liquid crystal polymer insulator and phosphor bronze. It features gold or tin plating, with a current capacity of 5A per pin, suitable for operating temperatures from -55°C to +125°C. Compatible with SMS, SLM, and RSM series, this connector offers reliable, RoHS-compliant connections with low contact resistance of 10 milliohms. Designed for high-performance electronic applications, it provides easy installation, high durability, and excellent electrical characteristics for demanding industrial and computing environments.
SAMTEC TMS10801GS Terminal Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over 50µ" (1.27 µm)
- Current Rating: 5A per pin
- Operating Temperature Range: -55°C to +125°C with Gold plating, -55°C to +105°C with Tin plating
- Contact Resistance: 10 milliohms
- Lead Size Accept: 0.46 mm (.018")
- Insertion Depth: 3.43 mm (.135") minimum
- Style: Through-hole and Right Angle options
- RoHS Compliant: Yes
- Maximum Process Temp: 450°F (232°C)
- Compatible Series: HTMS, SNM, SMS, SLM, RSM
- Dimensions: Diameter 0.30 inch (7.62 mm), Length varies by model
- Part Number: TMS-132-51-G-S
Buy the Buy Samtec TMS-132-51-G-S Part Number TMS10801GS Online
Order the Samtec Terminal Connector TMS-132-51-G-S online today to benefit from high-quality, durable connections with gold or tin plating. This connector handles up to 5A per pin and operates efficiently within temperature ranges from -55°C to +125°C, making it ideal for demanding electronic and industrial applications. Its RoHS compliance ensures environmentally safe usage, and its easy-to-install design guarantees quick integration into your projects. Experience unmatched reliability and performance with this versatile connector, available for fast delivery and secure online purchase.
Get Samtec TMS-132-51-G-S today—designed for high-performance, reliable electrical connections with gold or tin plating and capability up to 5A.
Frequently Asked Questions
Where can I buy SAMTEC TMS10801GS?
You can click on the BUY or RFQ button to purchase TMS10801GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMS10801GS?
You can download the TMS10801GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMS10801GS?
SAMTEC
