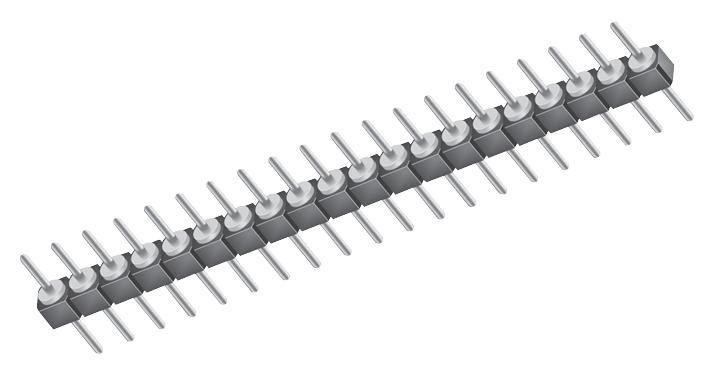

SAMTEC TS109TA terminal strip
The TS109TA is a precision terminal strip designed for reliable electrical connections in industrial applications. Featuring a durable construction with black glass-filled polyester insulation and brass terminals, it offers excellent thermal stability and corrosion resistance. The strip supports gold or tin plating options for optimized conductivity and solderability, with operating temperature ranges from -55°C to 125°C depending on plating. Suitable for high-density connections, the TS109TA ensures secure, long-lasting performance in demanding electrical systems, making it ideal for control panels, automation, and wiring harnesses.
SAMTEC TS109TA terminal strip Specifications:
- Insulator Material: Black G.F. Polyester (TS, TD) / Black Liquid Crystal Polymer (HTS)
- Terminal Material: Brass (standard), Phosphor Bronze (Style G)
- Plating Options: Gold over 50u
- Ni over 100u
- Sn over 50u"
- Operating Temp Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- RoHS Compliant: Yes
- Lead-Free Solderable: Wave only
- Number of Positions: 1 to 36
- Pin Diameter: 0.46 mm
- Component Length: Varies, with some options non-standard
- Certifications: Recognized per www.samtec.com/quality
Buy the Samtec TS109TA – Reliable Terminal Strip for Industrial Applications
Order the Samtec TS109TA terminal strip online today to ensure secure, corrosion-resistant connections in your electrical systems. Featuring robust insulation materials and versatile plating options, this terminal strip supports high-density wiring for control panels, automation equipment, and wiring harnesses. With a wide temperature range and RoHS compliance, it guarantees dependable performance for demanding industrial applications. Easy to install and solder, the TS109TA is your ideal choice for long-lasting, high-quality electrical connections in various industrial settings.
Get Samtec TS109TA today—built for precision, durability, and reliable electrical connections in industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC TS109TA?
You can click on the BUY or RFQ button to purchase TS109TA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TS109TA?
You can download the TS109TA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TS109TA?
SAMTEC
