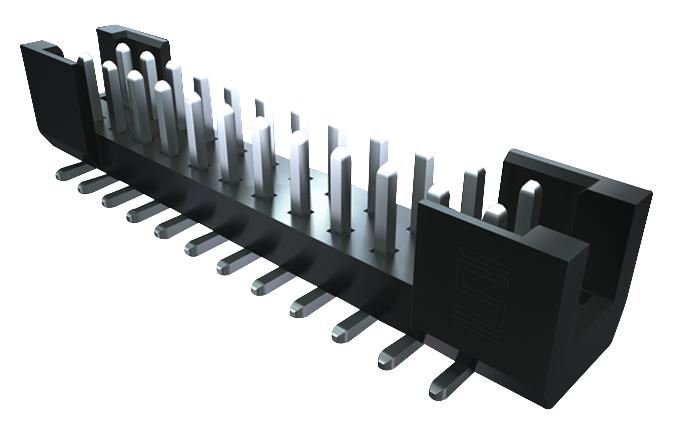

SAMTEC TSH11001LDHSL PCB Connector
The TSH-110-01-L-DH-SL is a high-quality board-to-board connector featuring black liquid crystal polymer insulators and phosphor bronze terminals with tin or gold plating. Operating efficiently within -55°C to +125°C, it is RoHS compliant and suitable for lead-free soldering. Available in various pin configurations from 5 to 45, this connector offers reliable SMT coplanarity and is designed for secure, lightweight electrical connections in industrial applications, including electronics and automation systems. Its robust construction ensures durability and consistent performance across a wide temperature range.
SAMTEC TSH11001LDHSL PCB Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over 50 micrometers Ni
- Operating Temp Range: -55°C to +105°C with Tin; -55°C to +125°C with Gold
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Coplanarity: 0.15 mm max
- Pin Configurations: 5, 10, 15, 20, 25, 30, 35, 40, 45 pins
- Dimensions: Approximate length 2.00 inches (50.8 mm), width varies by model
- Material: Black Liquid Crystal Polymer, Phosphor Bronze, Gold or Tin Plating
- Compatibility: Mates with specific samtec series, suitable for industrial and electronic automation systems
- Certifications: RoHS compliant
Buy the Samtec TSH-110-01-L-DH-SL – Reliable PCB Connector for Industrial Applications
Secure your electronics with the high-quality PCB connector designed for precise, reliable connections in industrial and automation systems. Featuring flexible pin configurations from 5 to 45, it is RoHS compliant and suitable for lead-free soldering processes. The connector’s black liquid crystal polymer insulators and phosphor bronze terminals with gold or tin plating ensure durability and optimal electrical performance across wide temperature ranges from -55°C to +125°C. Easy to install and compatible with standard PCB layouts, it’s your ideal component for dependable electronic connectivity.
Buy Samtec TSH-110-01-L-DH-SL now and experience unmatched reliability and performance in your electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC TSH11001LDHSL?
You can click on the BUY or RFQ button to purchase TSH11001LDHSL from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TSH11001LDHSL?
You can download the TSH11001LDHSL datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TSH11001LDHSL?
SAMTEC
