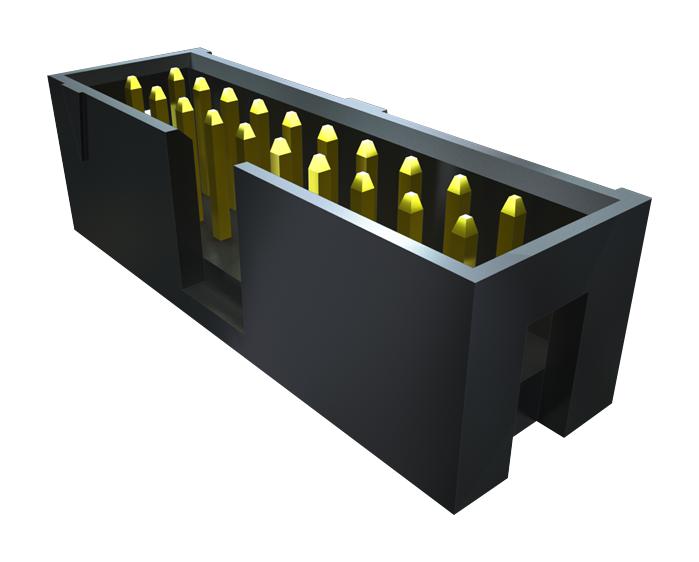

SAMTEC TSS10501GD09 Shrouded IDC Header
Shrouded IDC headers with a 0.025° square post head design, suitable for stacking and mating with series like IDSD, PSO, and SMSD. Features include gold or tin plating over phosphor bronze contacts, operating temperature range of -55°C to +125°C with gold, and -55°C to +105°C with tin. They meet RoHS compliance and have a flammability rating of UL 94V-0. Designed for reliable electrical connection, these headers support high voltage withstand of up to 41000 VRMS, are solderable with lead-free processes, and compatible with SMT applications. Perfect for electronic assemblies requiring robust and precise headers.
SAMTEC TSS10501GD09 Shrouded IDC Header Specifications:
- Operating Temperature Range: -55°C to +125°C with gold, -55°C to +105°C with tin
- Plating: Gold flash or matte tin over phosphor bronze
- Insulation Material: Filled polyester or natural PCT for different series
- Voltage Rating: 41000 VRMS withstand voltage
- RoHS Compliant: Yes
- Flammability: UL 94V-0
- Lead Plating: Gold or tin options
- Maximum Body Dimensions: Length varies with size, typical range 13.72 mm to 36.32 mm
- SMT Lead Coplanarity: Max 0.15 mm (0.006 inch)
- Material: Phosphor bronze with gold or tin plating
- Insulation Resistance: 5000 MΩ minimum
- Mechanical Stability: Designed for high reliability, suitable for stacking and mating applications
- Compatibility: Supports IDSD, PSO, SMSD series headers and connectors
