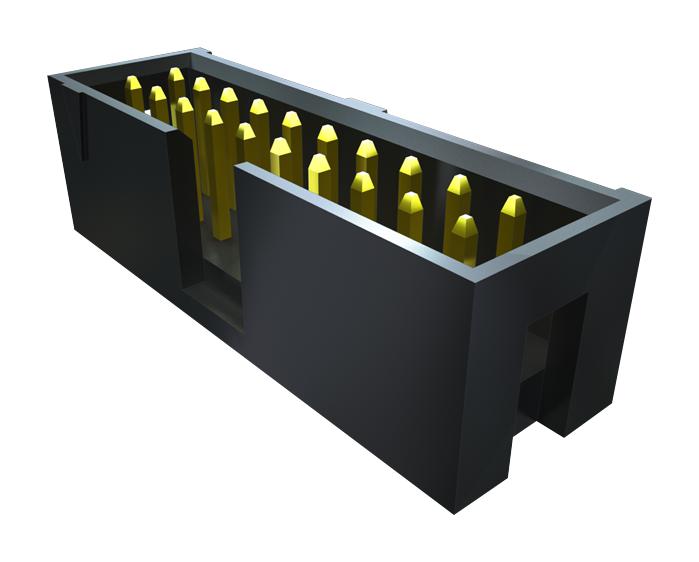

SAMTEC TSS10501GD10 High-Density Header
Shrouded .025° square post headers designed for high-density applications, mate with various pin strip configurations, featuring gold or tin plating for improved corrosion resistance. Compatible with IDC and stack headers, these connectors are suitable for breadboard and PCB assembly, with operating temperatures from -55°C to +125°C depending on plating. Made of high-quality polyester and phosphor bronze, they provide excellent insulation resistance, mechanical stability, and RoHS compliance, ensuring reliable electrical connections in demanding environments.
SAMTEC TSS10501GD10 High-Density Header Specifications:
- Insulator Material: Filled Polyester (TSS, ZSS) or PCT (HTSS)
- Plating: Gold flash or Tin over Nickel
- Operating Temp Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Contact Material: Phosphor Bronze
- Contact Resistance: Gold on post, Matte Tin on tail, 5000 MO min insulation resistance
- Flammability Rating: UL 94V-0
- Withstanding Voltage: 41000 VRMS
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Body Dimensions: Varies with size, example 16.00 mm height for 2 positions, 28.70 mm for 6 positions
- Number of Positions: Ranges from 2 to 10
- Sizes: 16 mm to 36.32 mm height, 5 to 10 positions
- Compatibility: IDC, stack headers, mate with IDSD, PSO, SMSD series
- Features include alignment pins, polarized options, locking leads, and mechanical stability enhancements
Buy the Buy Samtec TSS10501GD10 Part Number TSS10501GD10 Online
Discover the versatile and reliable high-density header designed for demanding electronic assemblies. Made from durable polyester and phosphor bronze, with optional gold or tin plating for optimal corrosion resistance and electrical performance. Suitable for IDC and stack applications, these headers operate from -55°C to +125°C and meet RoHS requirements. Easy to install and suitable for various PCB configurations, they provide excellent insulation resistance, mechanical stability, and electrical integrity, ensuring durable connections in professional electronic projects.
Buy Samtec TSS10501GD10 now and experience unmatched reliability and performance with high-quality gold or tin plated shrouded headers for your electronic assemblies.
