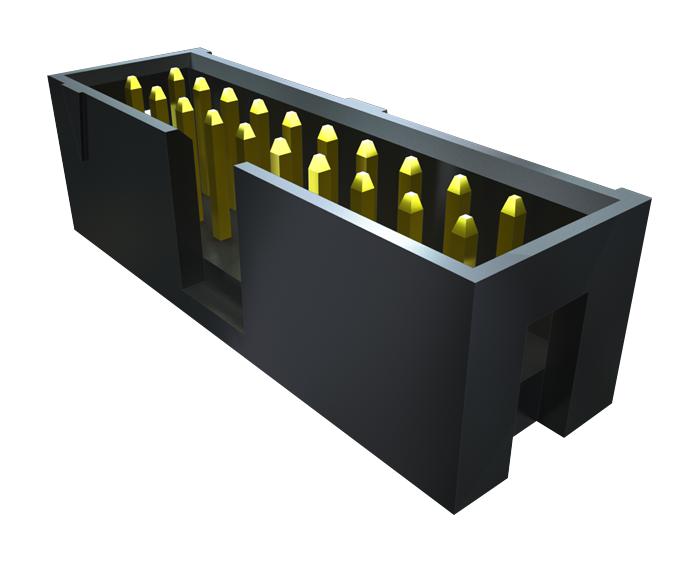

SAMTEC TSS10501LD09 Shrouded Square Post Header
Shrouded .025° square post headers are compact, durable connectors designed for high-temperature environments with gold or tin plating options. These headers feature black glass filled polyester insulators and phosphor bronze contacts, ensuring excellent electrical performance and mechanical stability. Suitable for stacking applications, they withstand operating temperatures from -55°C to +125°C (gold) and -55°C to +105°C (tin). Compatible with various mating strips, the headers meet RoHS standards, offering reliable solderability and high insulation resistance, ideal for complex electronic assemblies requiring precise alignment and secure connections.
SAMTEC TSS10501LD09 Shrouded Square Post Header Specifications:
- Insulator Material: Black Glass Filled Polyester
- Contact Material: Phosphor Bronze
- Plating: Gold flash (03, 05, 07, 08, 10, 12, 14) or Tin (02, 04, 06)
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Insulation Resistance: 5000 MΩ minimum
- Withstanding Voltage: 41000 VRMS
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Height: 13.72 mm to 36.32 mm depending on size
- Number of Positions: From 2 to 12
- Body Length: From 16.00 mm to 36.32 mm depending on size
- Width: 13.72 mm to 34.04 mm depending on size
- Stacking: For multiple mating rows, with optional alignment pins
- Application: Stackable headers for high-density electronic modules
- Standard Sizes: 2, 3, 4, 5, 6, 7, 8, 10, 12 positions
- Certifications: RoHS compliant
Buy the Samtec Series HTSS Shrouded Square Post Header: TSS10501LD09
Purchase the Samtec HTSS series shrouded square post headers online today and ensure your electronic assemblies achieve high-density, reliable connections. These headers are engineered with durable materials, gold or tin plating for excellent conductivity, and are suitable for high-temperature environments, making them perfect for demanding applications. Designed for easy mounting, they provide precise alignment with optional pins and meet RoHS standards. Secure your inventory now and benefit from fast shipping, quality assurance, and technical support for all your electronic connector needs.
Buy Samtec HTSS series shrouded square post headers now and experience unmatched reliability and high-temperature performance for your electronic connectors.
