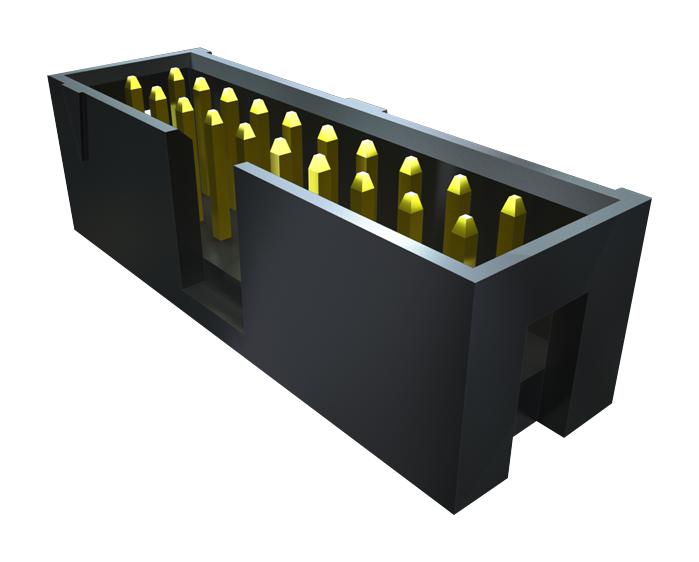

SAMTEC TSS10503SD Shrouded Header
Shrouded vertical headers with .025° square post heads designed for stacking and mating with IDC and other headers. Constructed with gold or tin plating on phosphor bronze or RSS body materials, these connectors support operating temperatures from -55°C to +125°C, with RoHS compliance and UL rating. Available in various sizes, styles, and pin counts, they feature high insulation resistance (5000 MO min), withstand voltage of 41000 VRMS, and SMT lead coplanarity for added mechanical stability. Ideal for electronic assemblies requiring secure, reliable connections with optional alignment pins and polarization features.
SAMTEC TSS10503SD Shrouded Header Specifications:
- Lead Plating: Gold or Tin over Nickel
- Insulator Material: Phosphor Bronze or RSS Filled Polyester
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Insulation Resistance: 5000 MO min
- Withstanding Voltage: 41000 VRMS
- Flammability Rating: UL Rated
- RoHS Compliant: Yes
- Body Material: RSS or Phosphor Bronze
- Height: 13.72 mm to 36.32 mm depending on size
- Pin Count: 2 to 12 positions
- Lead Coplanarity: 0.15 mm maximum
- Mounting Style: SMT
- Polarized and Locking options available
- Standard sizes support 254 pin length plus additional options
- Spacing: 2.54 mm pitch, custom lengths available
- Peak temperature support: 125°C
