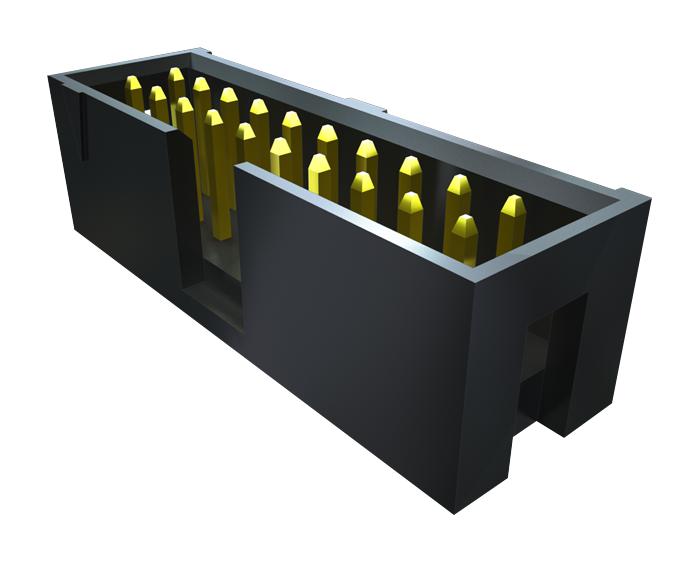

SAMTEC TSS10803SD Shrouded IDC Header
The TSS10803SD is a shrouded IDC header connector designed for reliable and secure connections in electronic assemblies. Featuring black glass polyester insulation, it supports a range of pin configurations with gold or tin plating options for enhanced conductivity and corrosion resistance. Operating between -55°C to +125°C (gold) and -55°C to +105°C (tin), it complies with UL 94V-0 flammability ratings. Its modular design accommodates different pin counts, with features like polarized locking and SMT lead coplanarity for ease of installation and durability in demanding environments.
SAMTEC TSS10803SD Shrouded IDC Header Specifications:
- Insulation Material: Black glass polyester
- Terminal Material: Phosphor bronze
- Plating Options: Au or Sn over 50 µ" Ni
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Flammability Rating: UL 94V-0
- Pin Configurations: 3, 5, 7, 8, 10, 12 pins per row
- Lead Coplanarity: 0.006" max (with stencil solution contact)
- Body Height: 0.540" to 1.430" depending on size
- Dimensions: 2.54 mm (.100") pitch x number of positions + 3.81 mm (.150") growth
- Features: Polarized, locking leads, suitable for SMT applications, mechanically stable with spacers recommended
