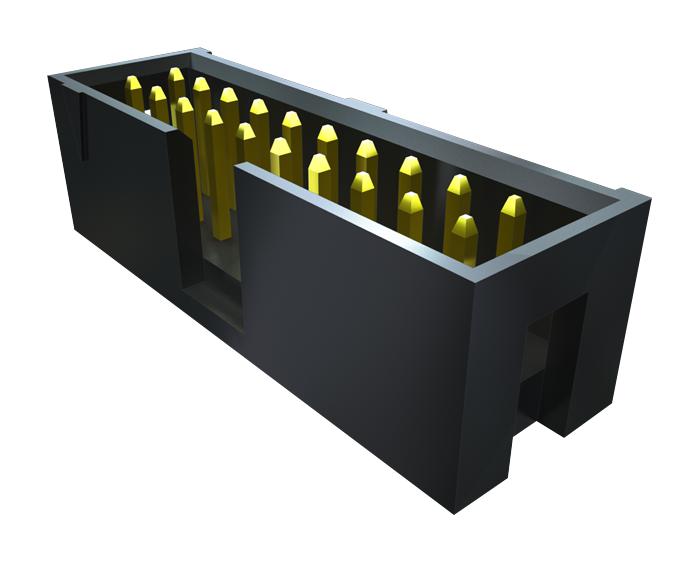

SAMTEC TSS12001LD05 Shrouded Square Post Header
Shrouded 0.025-inch square post header with gold or tin plating, designed for stackable connections in electronic assemblies. Compatible with IDC interfaces, these connectors feature high insulation resistance, wide operating temperature range, and RoHS compliance. Available with different sizes, polarizations, and locking options to ensure secure and reliable connections. Suitable for industrial, automation, and electronic device applications, the headers are built with phosphor bronze or beryllium copper contacts and feature polarity and alignment pin options for precise assembly. Metal plating options include gold flash or matte tin, providing excellent electrical conductivity and corrosion resistance.
SAMTEC TSS12001LD05 Shrouded Square Post Header Specifications:
- Contact Material: Phosphor Bronze or Beryllium Copper
- Plating: Gold flash over 50 μ" Ni or Matte Tin
- Insulation Material: Filled Polyester or Glass-filled Polyester
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Insulation Resistance: 5000 MΩ minimum
- Flammability Rating: UL 94V-0
- Withstanding Voltage: 41000 VRMS
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Body Dimensions: Length varies with size, typical about 16.00 mm to 36.32 mm
- Number of Positions: Ranges from 3 to 10 and more
- Height: From 13.72 mm to 34.04 mm depending on size
- Alignment Pins: Optional for mechanical stability
- Locking Leads: Optional at 2° angle
- Plating Options: Gold flash or matte tin
- Compliance: RoHS, UL Listed, CSA Certified
Buy the Samtec Series HTSS Shrouded .025 Square Post Headers: TSS12001LD05
Order the Samtec TSS12001LD05 shrouded square post header online today for high-quality, reliable connections in electronic assemblies. Featuring gold or tin plating for durability, these headers offer excellent electrical performance across a wide temperature range. They are RoHS compliant and suitable for industrial and automation systems. With various sizes, polarization, and locking options, these connectors ensure secure assembly and long-term stability. Trust Samtec’s precision engineering to meet your demanding electrical connection needs—purchase now for efficient and dependable installation.
Buy Samtec TSS12001LD05 now and experience unmatched reliability and performance in your electronic stackable connection applications.
