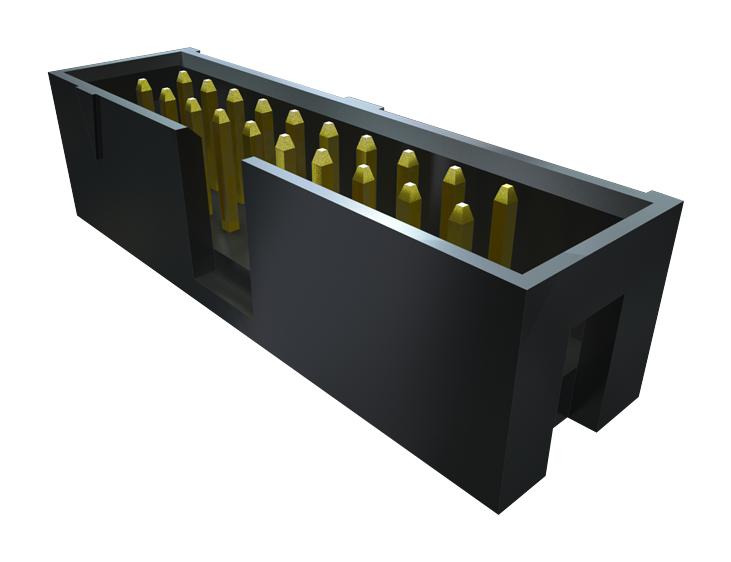

SAMTEC TST10501TD09 Shrouded Board-to-Board Connector
Shrouded board-to-board connectors with 0.025-inch square post IDC headers designed for reliable electrical connections in electronic assemblies. These connectors feature insulator materials such as filled polyester, phosphor bronze terminals with gold or tin plating, and standard sizes ranging from 5 to 36 positions. With operating temperatures from -55°C to +125°C and RoHS compliance, they are suitable for high-temperature and environmentally conscious applications. The connectors support wave soldering and offer robust mechanical stability, making them ideal for complex, dense electronic circuits requiring secure, modular connections.
SAMTEC TST10501TD09 Shrouded Board-to-Board Connector Specifications:
- Insulator Material: Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over Ni
- Current Rating: 2A
- Operating Temp Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Flammability Rating: UL 94V-0
- Withstanding Voltage: 1000 VRMS
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Sizes: 5, 7, 8, 10, 12, 13, 15, 17, 20, 25, 32, 36 positions
- Maximum Length: Varies with size, up to approximately 36 positions
- Mounting Style: Board-to-board, wave and SMT soldering compatibility
- Contact Spacing: 0.025 inches
- Series: TST, ZST, HTST
- Application: Industrial electronics, automation equipment, high-density connections
Buy the Samtec Series TST Shrouded Board-to-Board Connectors: TST10501TD09
Order the reliable Samtec TST10501TD09 shrouded board-to-board connector online today. Designed with precise 0.025-inch post spacing, these connectors support high-density, secure connections ideal for industrial, automation, and electronics projects. Constructed using high-quality filled polyester insulators and coated with gold or tin plating, they provide excellent electrical performance and temperature resilience from -55°C to +125°C. Fully RoHS compliant, these connectors support wave and SMT soldering techniques, ensuring durability and ease of assembly for demanding applications.
Buy Samtec TST10501TD09 now and experience unmatched reliability and high-performance connections for your electronic assemblies.
