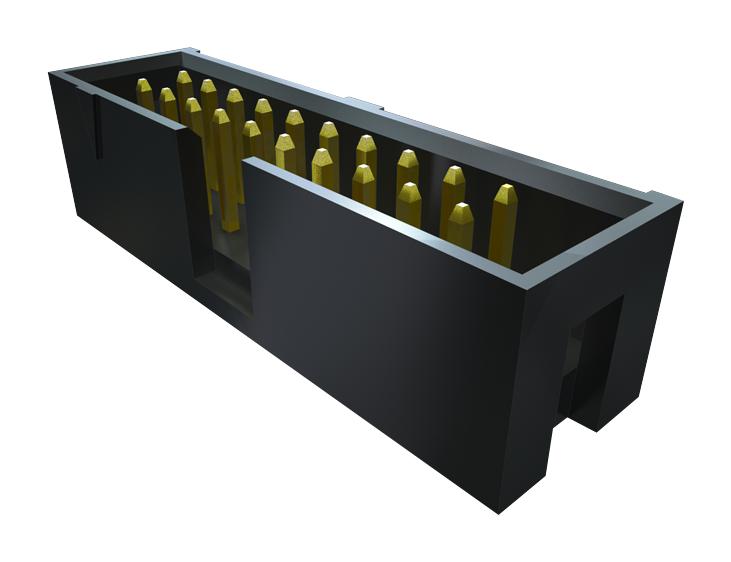

SAMTEC TST10504SDRA09 Board-to-Board Connector
Shrouded board-to-board connectors with .025 inch pitch and square post IDC heads designed for reliable electrical connections in industrial equipment. Featuring optional gold or tin plating, insulator materials, and varying pin counts from 5 to 36, these connectors support high current ratings up to 4A and operate within -55°C to +125°C. They comply with RoHS standards, withstand voltages up to 1000 VRMS, and are suitable for wave or SMT applications with excellent coplanarity. Mechanical stability is enhanced with optional alignment pins and spacers, making them ideal for crowded or high-vibration environments.
SAMTEC TST10504SDRA09 Board-to-Board Connector Specifications:
- Pitch: .025 inch (0.64 mm)
- Pin Count: 5 to 36 positions
- Material: Filled Polyester insulator, Phosphor Bronze contacts
- Plating: Gold or Tin over Nickel
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Current Rating: Up to 4A per contact
- Voltage Rating: 1000 VRMS
- Flammability Rating: UL 94V-0
- RoHS Compliant: Yes
- Mounting Style: Wave and SMT
- Supported sizes include standard and non-standard lengths
- Mechanical stability: Optional alignment pins and spacers
- Coplanarity: Max 0.004 inches (0.10 mm) for SMT
- Housing Material: insulation-filled polyester
