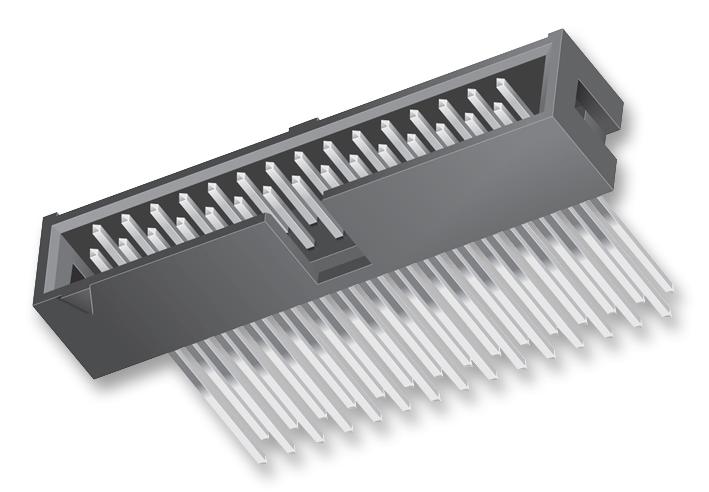

SAMTEC TST10801GD Shrouded IDC Header
The TST10801GD is a shrouded .025 inch square post IDC header designed for reliable board-to-board connections. Made with phosphor bronze contacts, gold-plated for enhanced conductivity and corrosion resistance, it supports a range of insulator materials, including polyester and glass-filled options. It features a compact, right-angle design with a UL 94V-0 flammability rating and RoHS compliance. Suitable for applications requiring high voltage withstand capacity up to 1000 VRMS, with lead-free solderability, and optimized for wave soldering with coplanarity specifications. The connector ensures durability and secure mating in various electronic assemblies.
SAMTEC TST10801GD Shrouded IDC Header Specifications:
- Flammability Rating: UL 94V-0
- Contact Material: Phosphor Bronze
- Plating: Gold over Nickel
- Insulation Resistance: 5000 MΩ min
- Voltage Rating: 1000 VRMS
- Operating Temperature Range: -85°C to +105°C
- Material: Polyester and Glass-filled options
- Dimensions: Shrouded design, 0.025 inch pitch, various lengths up to 36 positions
- Coplanarity: 0.10 mm (0.004 inch) for 16-15 positions, 0.15 mm (0.006 inch) for 17-36 positions
- RoHS Compliant: Yes
- Lead-Free: Yes
- Solderability: Lead-Free compatible, suitable for wave soldering
- Application: Board-to-board, wire-to-board connections
- Series: TST, HTST, ZST, compatible with Samtec series like SSW, SSQ, ESW, ESQ, SSM, BCS
Buy the Buy Samtec TST10801GD Part Number TST10801GD Online
Purchase the Samtec TST10801GD shrouded IDC header online today to ensure reliable, high-quality connections for your electronic projects. This connector features a 0.025 inch pitch, gold-plated contacts for superior conductivity, and a robust construction rated for 1000 VRMS. Its compact right-angle design supports a range of insulator materials and is compatible with multiple series for versatile applications. Trusted for durability, RoHS compliance, and lead-free soldering, this connector is ideal for secure wire and board-to-board connections in demanding environments.
Get Samtec TST10801GD today—built for high voltage tolerance and long-lasting durability in electronic assemblies.
