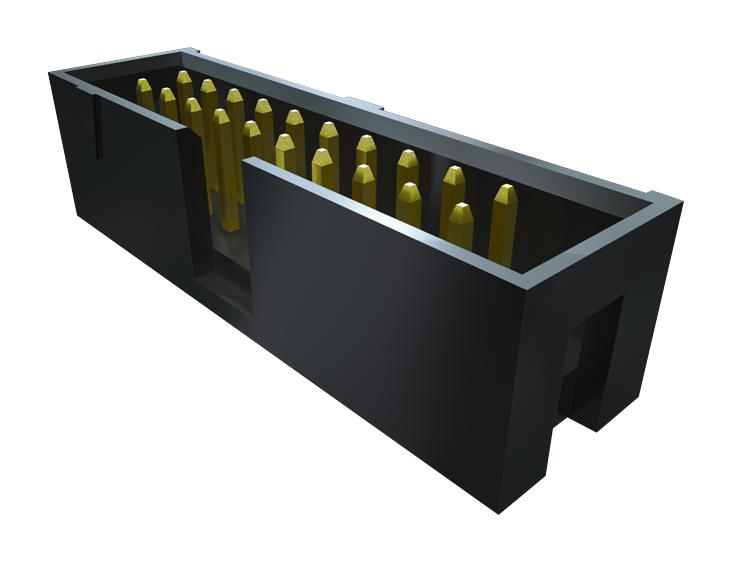

SAMTEC TST11502TDLL Shrouded Board-to-Board Connector
Shrouded board-to-board connectors with .025 inch square post IDC head design suitable for various electronic applications. Features include insulation resistance, reliable terminal material, and plated contacts for optimal conductivity, with operating temperatures from -55°C to +125°C depending on plating. These connectors offer RoHS compliance, wave solderability, and optional features like polarized and locking leads. Ideal for high-density, secure connections in complex assemblies, ensuring mechanical stability and long-term performance with customizable sizes and configurations.
SAMTEC TST11502TDLL Shrouded Board-to-Board Connector Specifications:
- Insulator Material: Filled Polyester (Not available on -DV)
- Terminal Material: Phosphor Bronze with Au or Sn plating
- Plating: Au or Sn over Ni (2.54 mm) .100 x No. of Positions + (7.62 mm) 300 -|
- Current Rating: 2 A per contact
- Operating Temp Range: -55 °C to +125 °C with gold plating, -55 °C to +105 °C with tin plating
- Flammability Rating: UL 94V-0
- Withstanding Voltage: 1000 VRMS
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Wave Soldering Compatibility: Yes
- Contact Resistance: Low resistance for reliable connections
- Mechanical stability: Suitable for applications requiring secure physical contact
- Connector Sizes: 05, 07, 08, 10, 12, 13, 15, 17, 20, 25, 32, 36
- Pin Count Options: Various configurations available
- Soldering: Suitable for wave and selective soldering processes
- Additional features: Polarized, Locking Leads, aligned pins
- Dimensions: Size varies with pin configuration, typical lead length approximately 4.0 mm
- Certification: RoHS compliant, UL listed
Buy the Samtec Series TST Shrouded Board-to-Board Connectors: TST11502TDLL
Purchase the Samtec TST11502TDLL shrouded board-to-board connector online today and enjoy high-quality, RoHS-compliant connectivity solutions. Designed for reliable electrical and mechanical performance, this connector features a .025 inch square post IDC head, gold or tin plating for optimal conduction, and operating temperatures from -55°C to +125°C. Its versatile configurations include polarized and locking options, suitable for high-density electronic assemblies. Ensure secure connections with confidence—order now to enhance your manufacturing and repair projects.
Buy Samtec TST11502TDLL now and experience unmatched reliability and high-density connectivity for your electronic assemblies.
